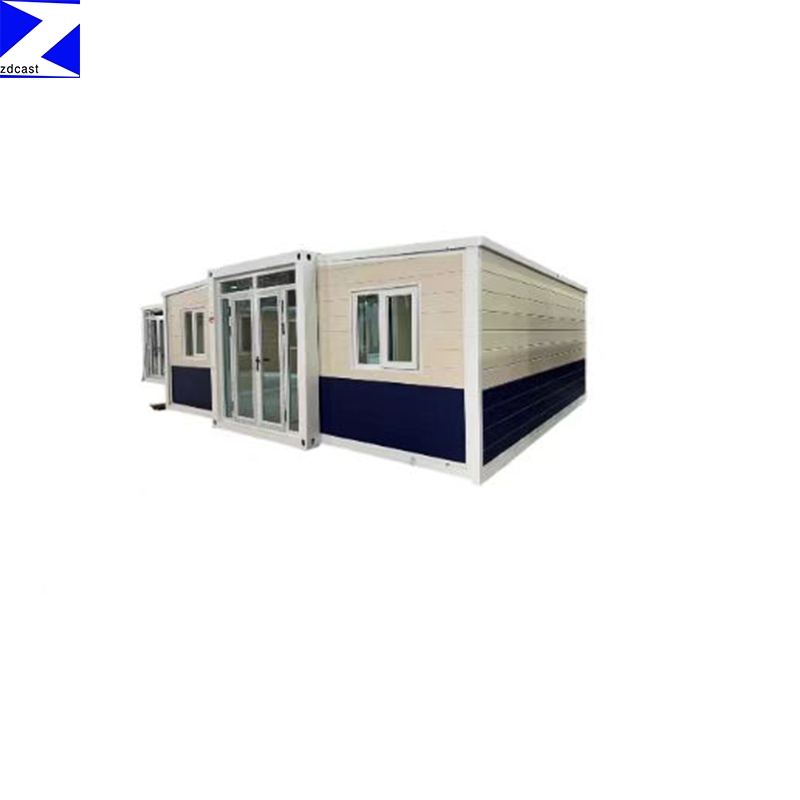

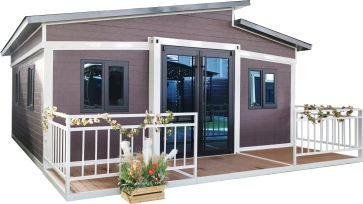

Expandable Camp Dormitories on Both Wings to Meet The Needs of Large-Scale Labor Accommodation

Basic Info.

Model NO. zd-e-ssa

Fast Installation Fast Installation

Feature Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance

Material Sandwich Panel

Wall Panels 50 Series Rock Wool Sandwich Panel

Lower Beam Welded Stub (Support Floor) Hot-DIP Galvanized Col

Upper Beam Hot-DIP Galvanized Cold-Rolled Section Steel 2.3 M

Pillar Hot DIP Galvanized Cold Rolled Section Steel 2.3m

Platen Sub-Grooves Upper Beam and Wall Panel Connection

Connector Each Set Has 8 Corners

Galvanized Square Pipe 50*100 Galvanized Square Tube 1.2mm

Gate Steel Door

Window Aluminum Alloy Belt Anti-Theft

Roof Tiles Top Tile 0.4

Internal Angles Colored Steel Plate Folding Parts

Fireproof Flooring 18 mm Thick Glass Magnesium Plate

Glass Wool 18 mm Thick Glass Magnesium

Transport Package Standard Packing

Specification 20FT

Trademark ZD-F20

Origin China, Shandong

Packaging & Delivery

Package Size 580.00cm * 320.00cm * 248.00cm

Package Gross Weight 950.000kg

Product Description

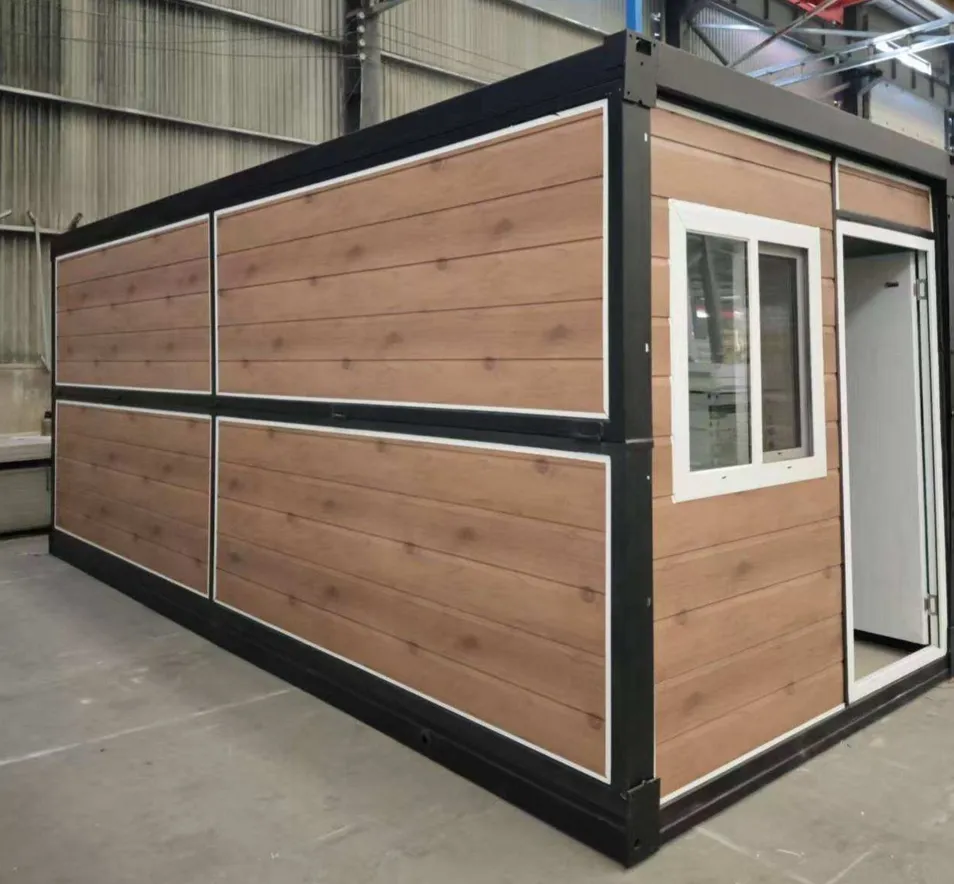

New Fast Container Housing Refugee Foldable House 2023 40ft 20ft Stackable Modular Light Steel Home Prefabricated

Feature Highlights

Designed for quick assembly and scalability, this modular container house features Class A fire resistance, wind resistance up to 110 km/h, and seismic resistance up to Class 10. It offers three insulation options, including Grade A fireproof rock wool board with a thermal conductivity of 0.035W/(M·K). The product has obtained CE certification, ensuring compliance with EU safety standards and providing market access for buyers.

Supplier Highlights

The merchant provides comprehensive customization, design customization, and sample customization services, and has product certifications, with a very high customer satisfaction rate and a praise rate of 100.0%.

Specifications & Design Highlights

This foldable modular steel home is ideal for rapid development projects, relief camps, or flexible office facilities. Combining premium insulation with structural grade steel frames ensures durability and efficiency in various weather conditions.

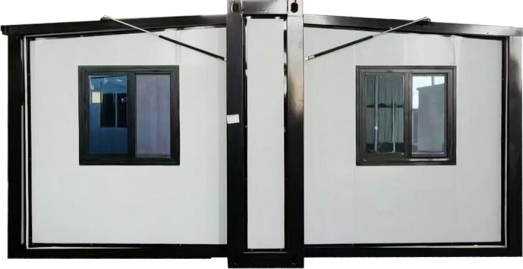

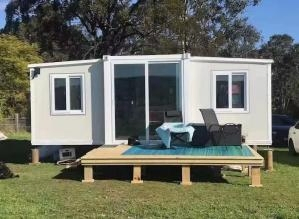

Expandable Camp Dormitories on Both Wings to Meet The Needs of Large-Scale Labor Accommodation

Specification

Key Configurations

Waterproof: 100.00%
Fireproof: Grade A
Wind Resistance: 90 ~ 110km/h
Seismic: Class 10
Sound Resistance: >= 30dB
Lifespan: 30+ Years
Roof Live Load: 1.0 kN/m²
Floor Live Load: 2.5 kN/m²

Detailed Information

Roof: External roof: Top tile 0.45 mm; Inner roof: T0.3mm type - 831 ceiling.
Wall Panels: Available in white, wood stripe, black, grey.
Floor: Refractory cement fiberboard 18 mm.

Wall Insulation Options

1. Grade A Fireproof Rock Wool Plates (50mm, 75mm, 100mm): Excellent fire resistance and thermal conductivity of 0.035W/(M·K) for high safety.

2. Polyurethane Foam (PU) (50 mm, 75 mm, 100 mm): Thermal conductivity is 0.022W/(M·K), with superior heat insulation properties for extreme climates.

3. Polystyrene Foam (EPS) (50mm, 75mm, 100mm): Thermal conductivity of 0.035W/(M·K), cost-effective and suitable for mild climates.

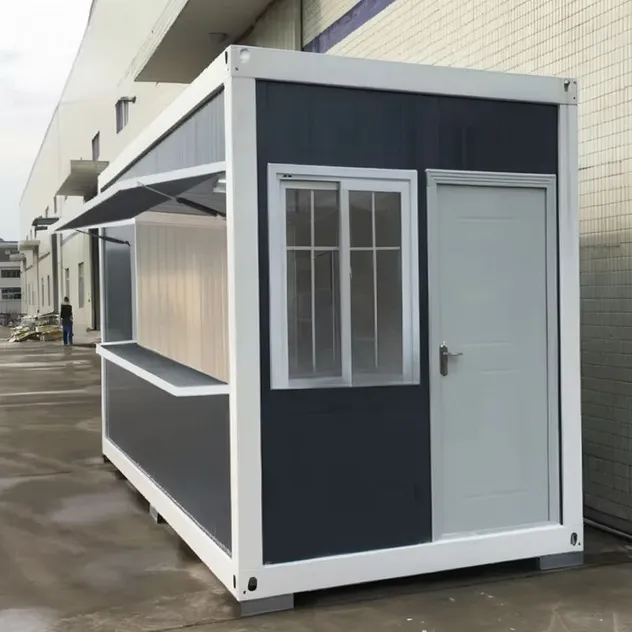

Right Elevation

Left Elevation

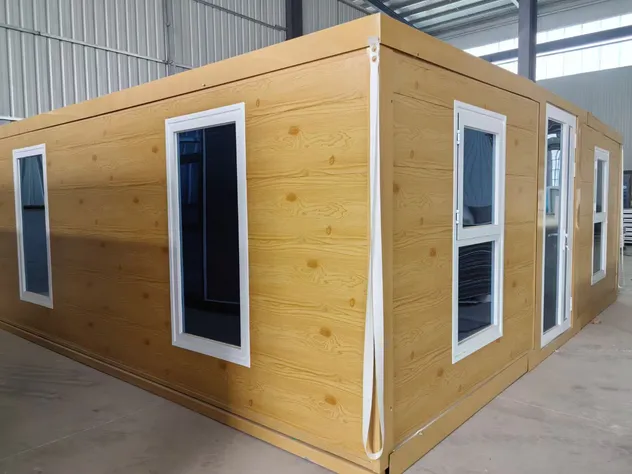

Front Elevation

Technical Specifications

(Custom configurations available upon request.)

Model	20FT	30FT	40FT
Operating Weight (kg)	2500	4000	5000
External size (mm)	5900 * 6300 * 2480	9000 * 6300 * 2480	11800 * 6300 * 2480
Folding size (mm)	5900 * 2200 * 2480	9000 * 2200 * 2480	11800 * 2200 * 2480

After Sales Service

Warranty Coverage

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.

Support & Training

Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

We are a high-tech enterprise focusing on the field of modular construction, specializing in the research and development, design, intelligent manufacturing, engineering installation and full life cycle services of prefabricated housing products such as flat container houses, folding container houses and extended container houses.

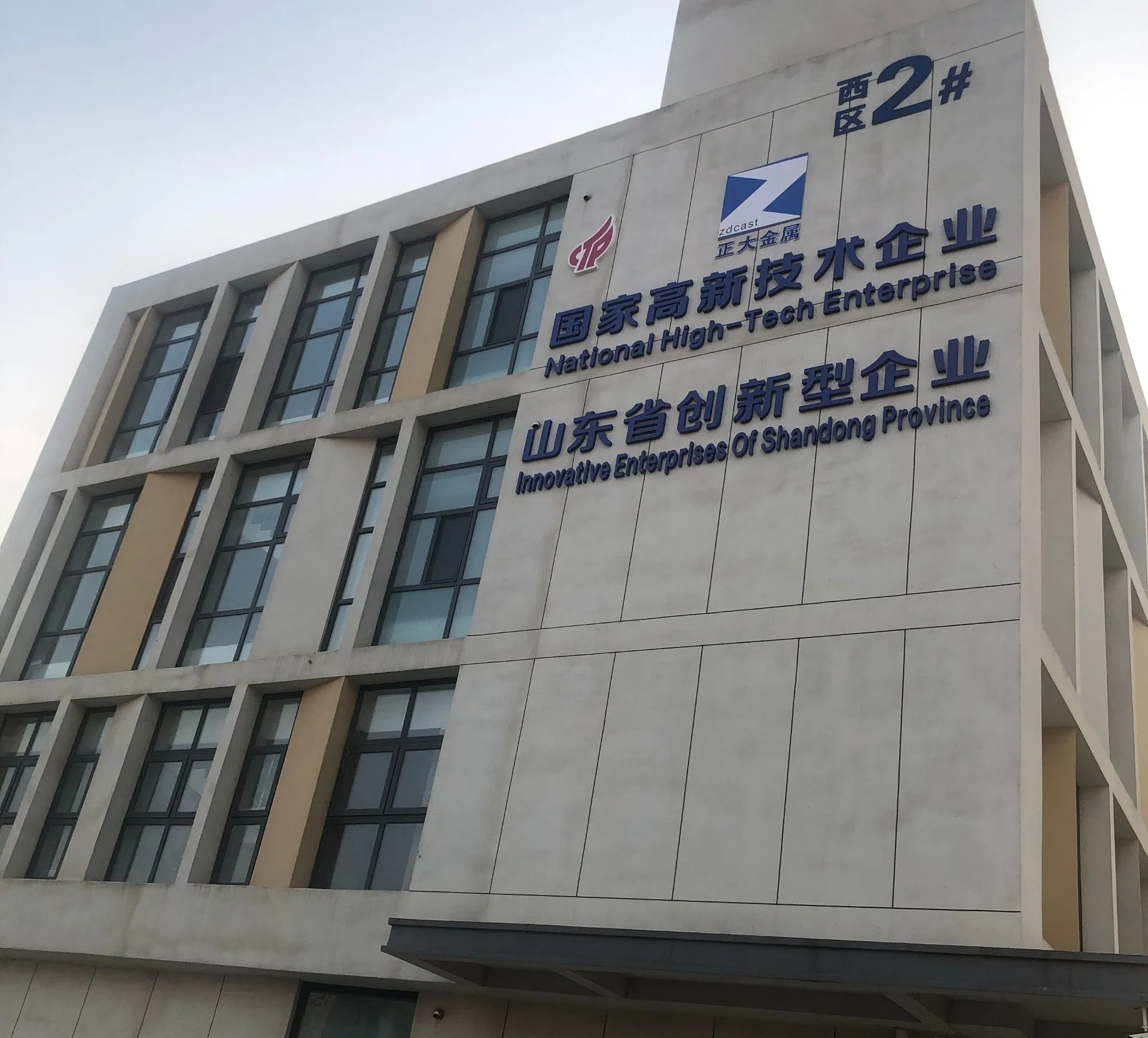

Factory plant facility for prefabricated houses

Why Choose Us?

Technological innovation: Our professional R&D team continuously improves the product structure and provides customized layout design.
Production base: We operate a 30,000-meter modern factory with advanced laser cutting and robotic welding systems.
Global reach: With seven regional service centers, we operate in 32 domestic provinces and 28 overseas cities.

Other Products

Expandable container house
Portable toilet
Outdoor smart public seating
Outdoor cabinets
Space capsule

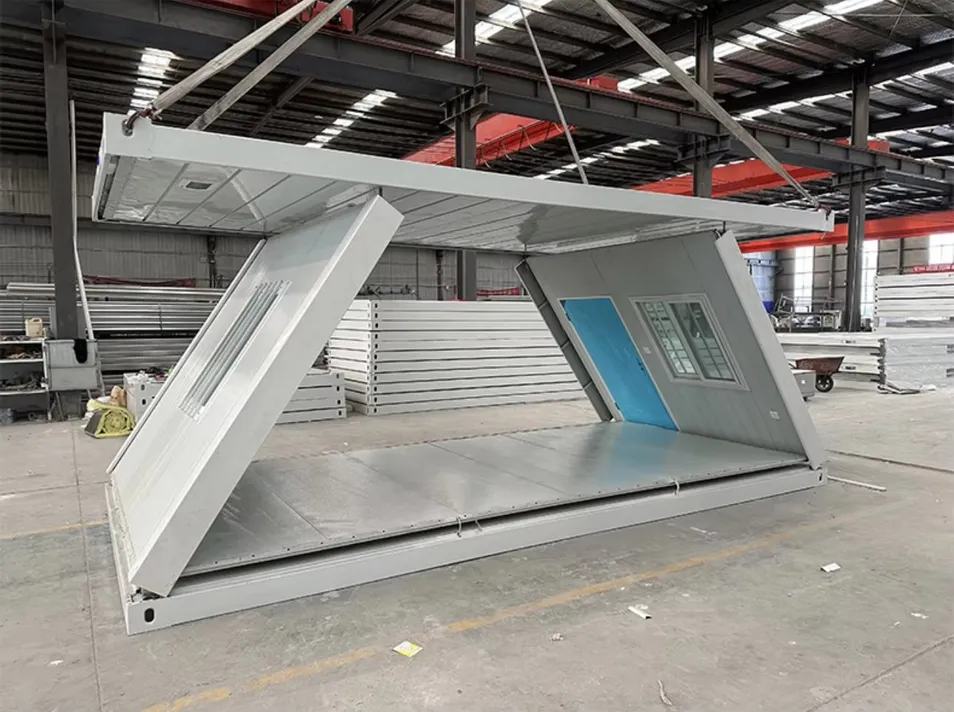

Shipping and packaging of container houses

Frequently Asked Questions

1. How many container houses can be produced per year?

Our 360,000 square meter warehouse facility allows us to manufacture 40,000 container houses per year.

2. What are the payment terms?

We require a 30% deposit in advance, and the remaining 70% settled before arriving at the destination port.

3. How fast can you deliver the order?

For standard size orders, we can ensure delivery within 7 days.

4. Do you provide customized services?

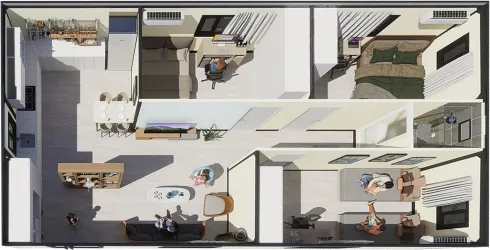

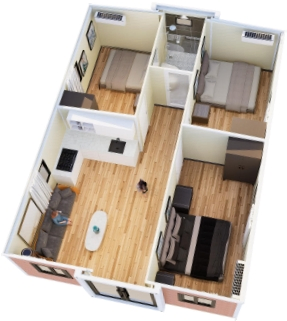

Of course. We can customize every aspect of your home, including door and window materials, their location, quantity, size, exterior color, and floor color materials, all tailored to your specifications. The interior layout can be designed in a two-, three-, or one-bedroom configuration, customized to fit your lifestyle. Our professional design team will provide 2D and 3D renderings and work with you until you are completely satisfied with the design.

5. How is the installation process?

We provide comprehensive installation guidelines in English after delivery. In addition, we can provide remote video instructions. For larger projects, we offer on-site installation services. The installation cost is $150 per day, and the client covers travel, accommodation, translation costs, and ensures the health and safety of our employees.

6. Can you assist in purchasing and installing equipment inside the container house?

Yes, we can assist in procuring necessary equipment such as air conditioners, refrigerators, dishwashers, and ovens. These devices can be packaged and shipped together with the container house inside the container ship.
