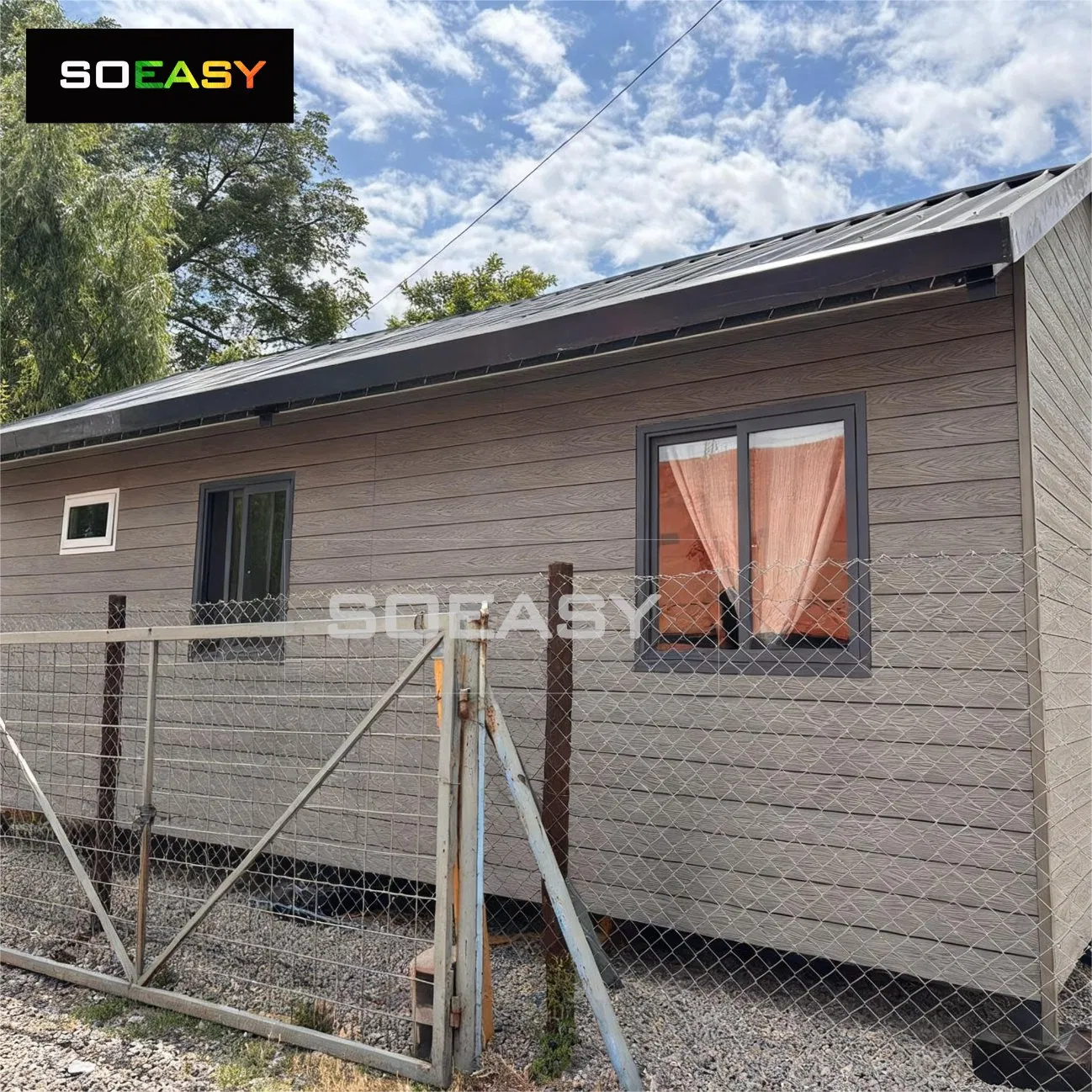

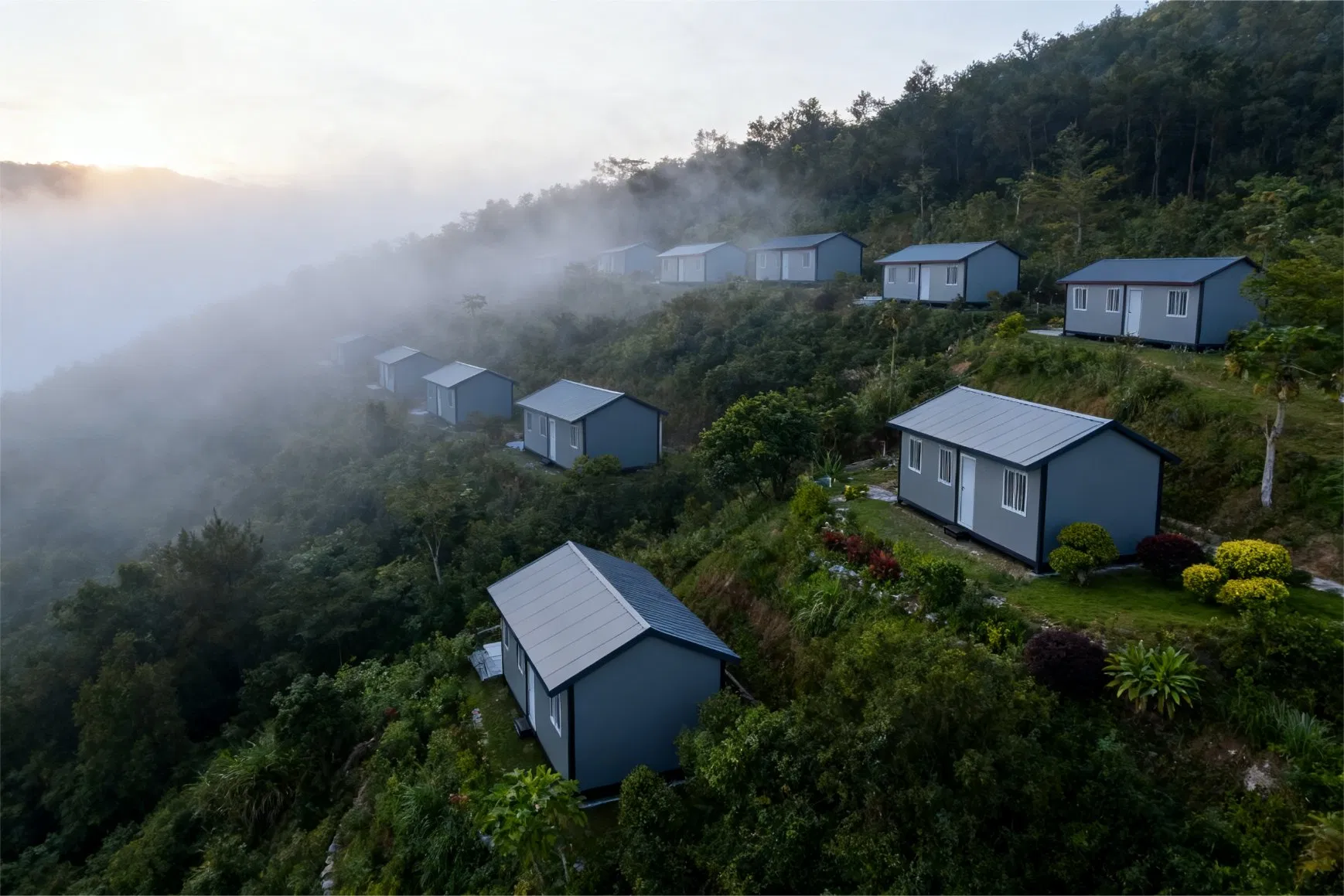

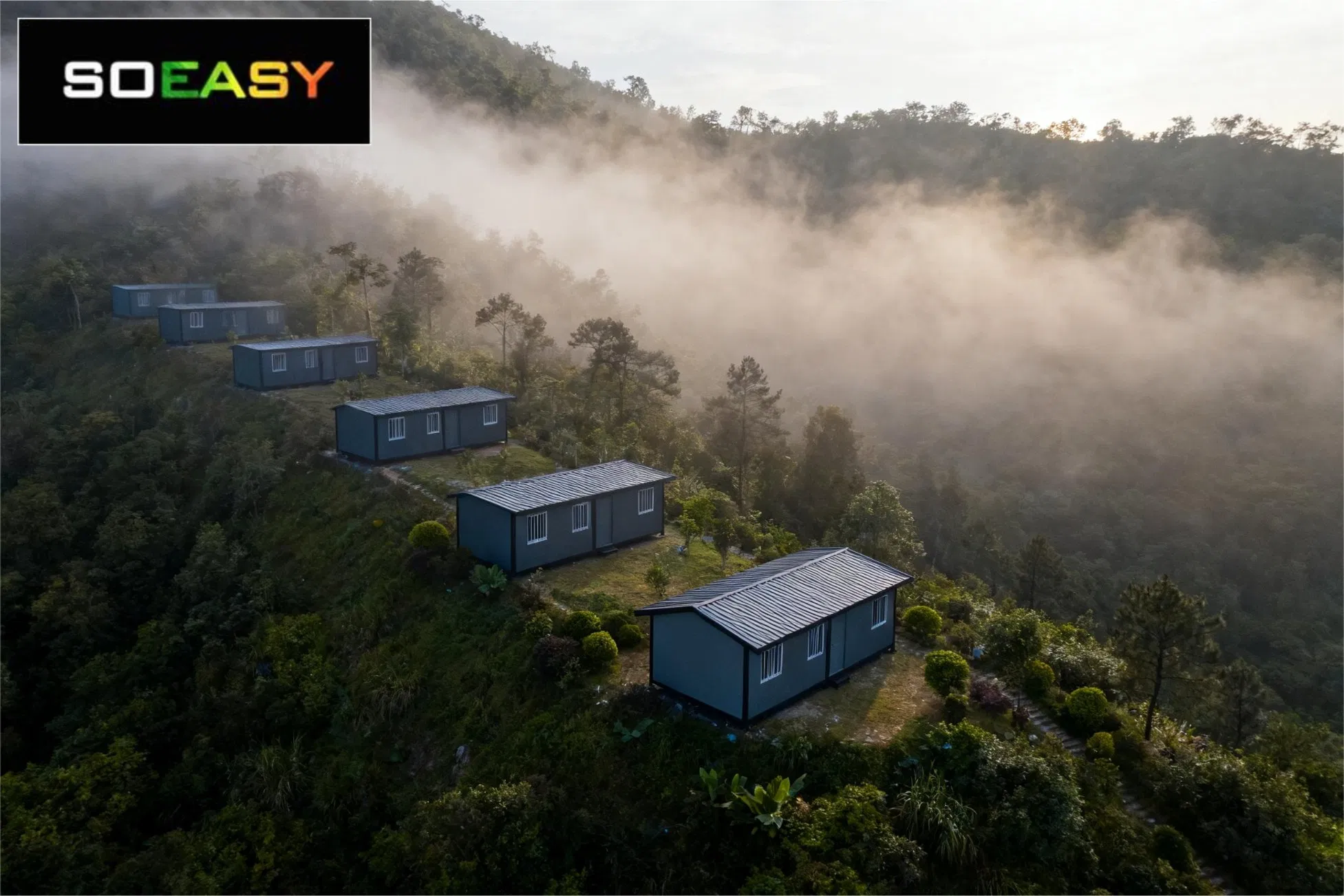

Mountain House is an economic type modular house widely used in construction sites and labor camps due to its low cost, convenient mobility, and recyclable materials. It is highly suitable for accommodation, offices, canteens, storage, bathrooms, refugee houses, and affordable homes.
One day 6 workers can set up one house. Saves labor charges significantly.
Suitable for every kind of land surface, reducing site preparation costs.
Special roof design ensures excellent waterproof performance.
Comes complete with wall panels, roofing, electrical components, and flooring.
Compared with civil buildings: easy construction, low cost, time-saving, labor-saving, and convenient transportation.
The main steel structures are made from "C" section steel. Assembly of components is done securely using bolts and nuts.
Recyclable materials that can be assembled and disassembled up to six times. Features a short installation period where 6 workers can install around 200 sqm in a day.
Features reliable waterproofing, corrosion-resistance, and sound-insulating properties. Built to withstand winds up to 120km/h and grade 8 earthquakes.
| Item | Specification Details |
|---|---|

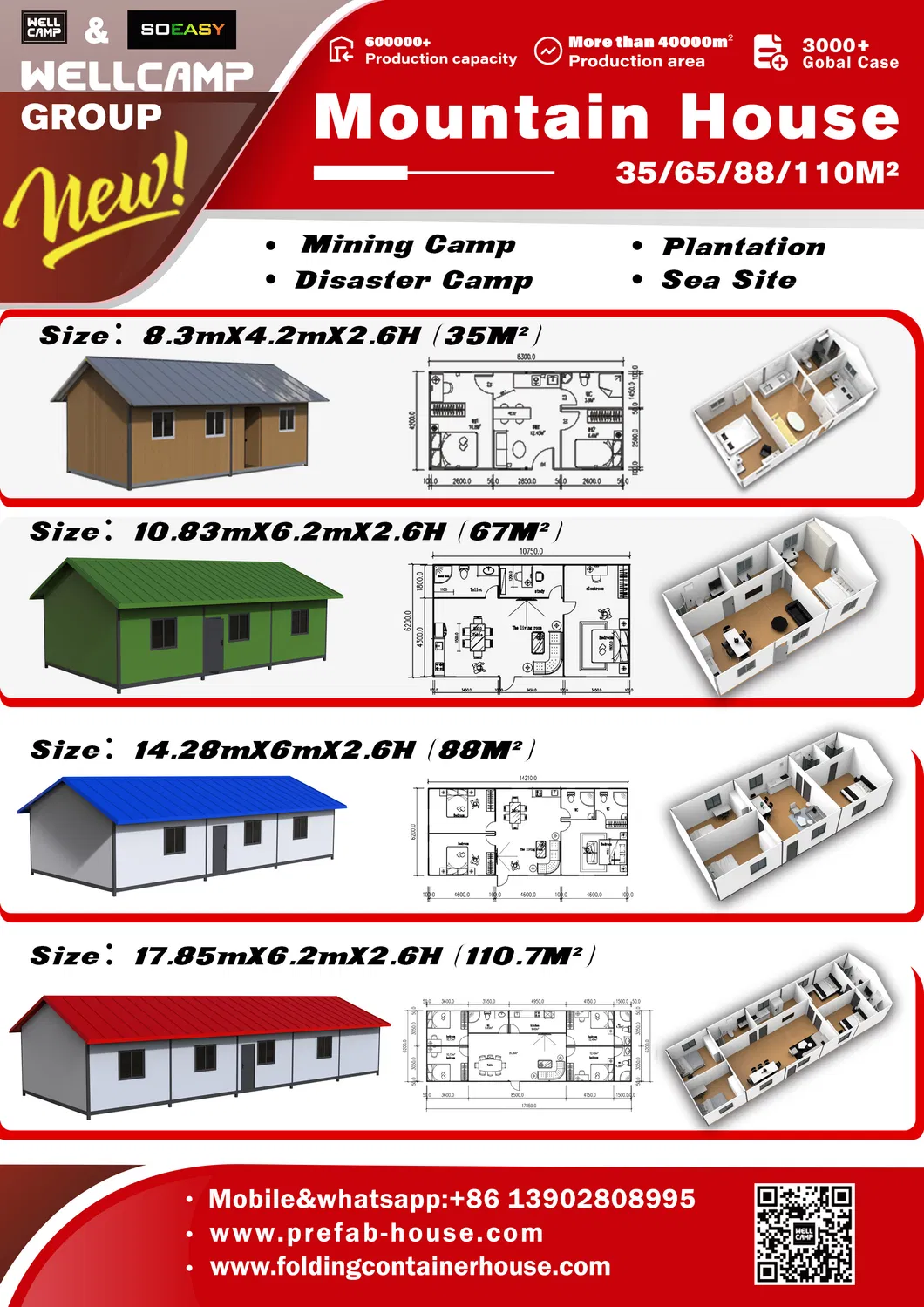

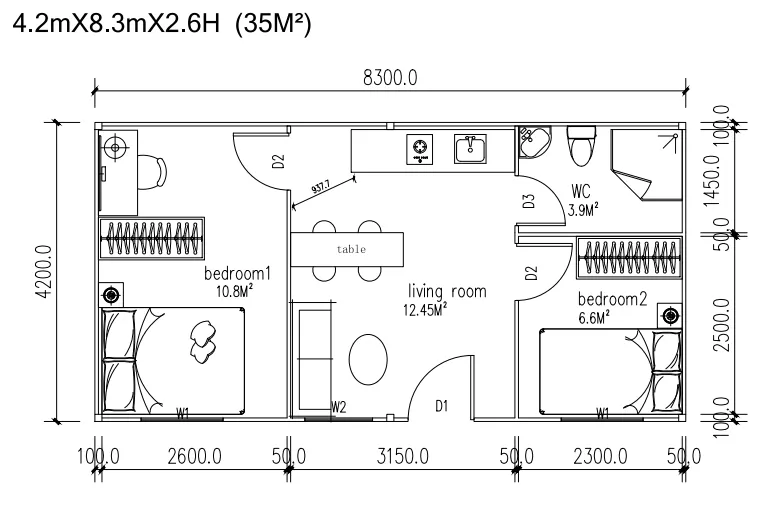

| Size | 4.2m x 8.3m x 2.6H |
| Structure | Steel structure frame, square tube beam, and sandwich panel combination |

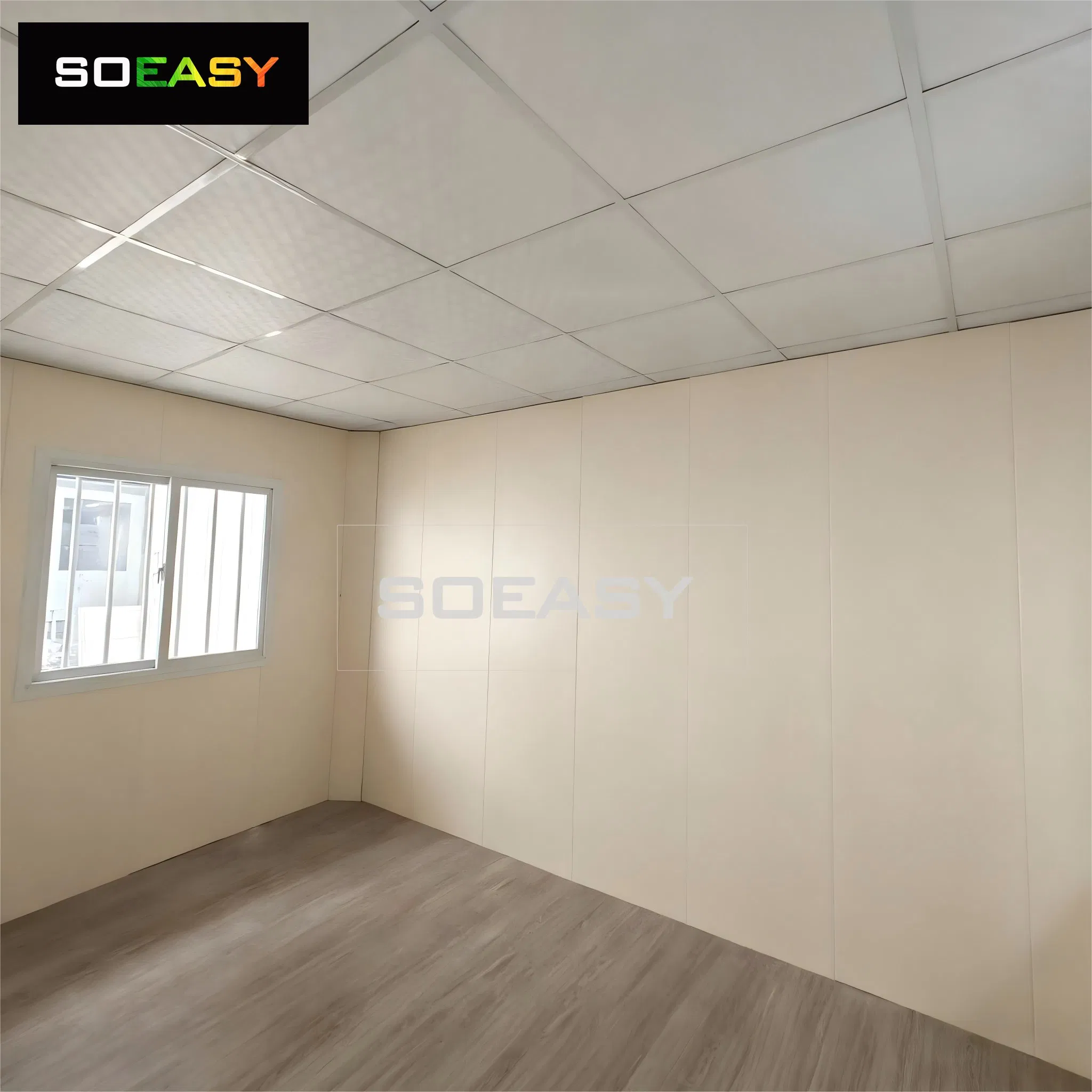

| Wall & Roof | 50mm EPS sandwich panel |
| Floor | 18mm cement board |
| Door and Windows | 50mm EPS sandwich panel door + aluminum alloy sliding window |

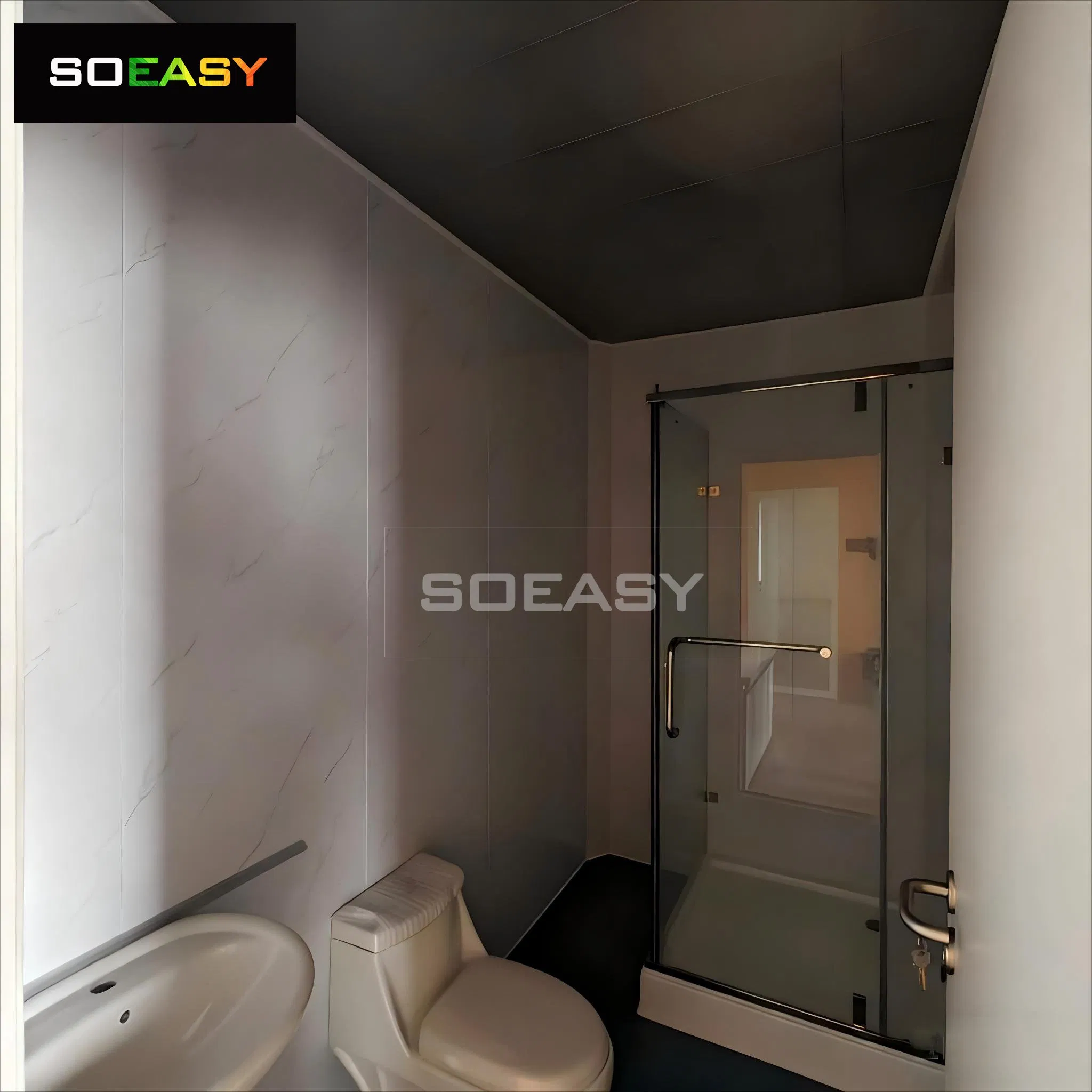

| Facilities | Standard electrical system (includes LED lamp, switch, socket, industrial inlet, and DB box). Optional features include integral bathroom, water system, kitchen, cabinet, bed, PVC floor adhesive, etc. |
| Accessories | Adjusting footing, wheels |
| Performance | 200kg / m² bearing capacity, Grade 10 wind resistance, Grade 8 earthquake resistance, and grade B1 fire resistance |
| Loading | 5 sets loaded in 1 * 40'HQ shipping container |
The house features exceptionally fast installation. A team of 6 workers can fully assemble one house within a single day, significantly reducing local labor costs.
No, this modular house does not require a formal foundation, making it highly versatile and suitable for quick deployment on virtually any kind of land surface.
The structure is designed to handle up to 200kg/m² bearing capacity, Grade 10 wind resistance (resisting winds up to 120km/h), Grade 8 earthquake resistance, and Grade B1 fire resistance.
Yes, it uses recyclable materials and can be assembled and disassembled up to six times, making it a highly cost-efficient solution for temporary setups like mining camps and labor accommodations.
The package comes with standard walls, roof, flooring, and a fully configured electrical system including LED lamps, switches, sockets, DB box, and an industrial inlet. Custom facilities such as bathrooms, kitchens, and furniture can be added optionially.
Up to 5 complete sets of the 4.2m x 8.3m x 2.6H houses can be efficiently loaded and transported in a single 40'HQ shipping container.
