| Expanded size (mm) L*W*H | L5900*W6300*H2480 |
| Internal space (mm) L*W*H | L5640*W6140*H2240 |
| Folded size (mm) L*W*H | L5900*W2200*H2480 |
| Weight (KG) | 2500 |
| Main beam | Galvanized square tube 80*100*2.5MM Q235 |
| Integrated column head | Galvanized folding piece 150*210*2.0MM Q235 |
| Sub-frame | Galvanized square tube 40*60*1.0MM Q235 |
| Hinges | Galvanized thickened hinge Q235 |
| Frame color | Painting process White frame |
| Middle floor | 18mm glass magnesium board (does not contain asbestos) |
| Both sides floor | 18mm glass magnesium board (does not contain asbestos) |
| Floor leather | Floor leather Palm wood |
| Wall panel | 70mm sandwich board, color roll double-sided 0.25 (wood grain color). Standard sandwich material is EPS |
| Partition | 50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as above |
| Main top and side top | 50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as above |
| Parameters |
1. Standard Australian standard wires, 62 incoming wires, 42 air conditioning sockets, 2.5' ordinary sockets, 1.5' lighting. (Circuits that meet certification requirements can be customized according to the country) 2. Circuit breaker system: 1 2P63A main switch, 1 2P32A/2P20A/2P16 branch leakage protector. 3. Lighting: 6 LED ceiling lights. 4. Sockets: Standard Australian three-hole socket (socket standards can be configured according to customer requirements) |
| Entrance door | Standard thermally-insulated aluminum doors and windows (double glazed tempered glass with blue Window film) open outwards (door frame is black). Size: W1890*H2230 |
| Window | Standard aluminum alloy (double glass, tempered, blue film) sliding window with diamond mesh (window frame is black). 920*920 * 6 pieces |

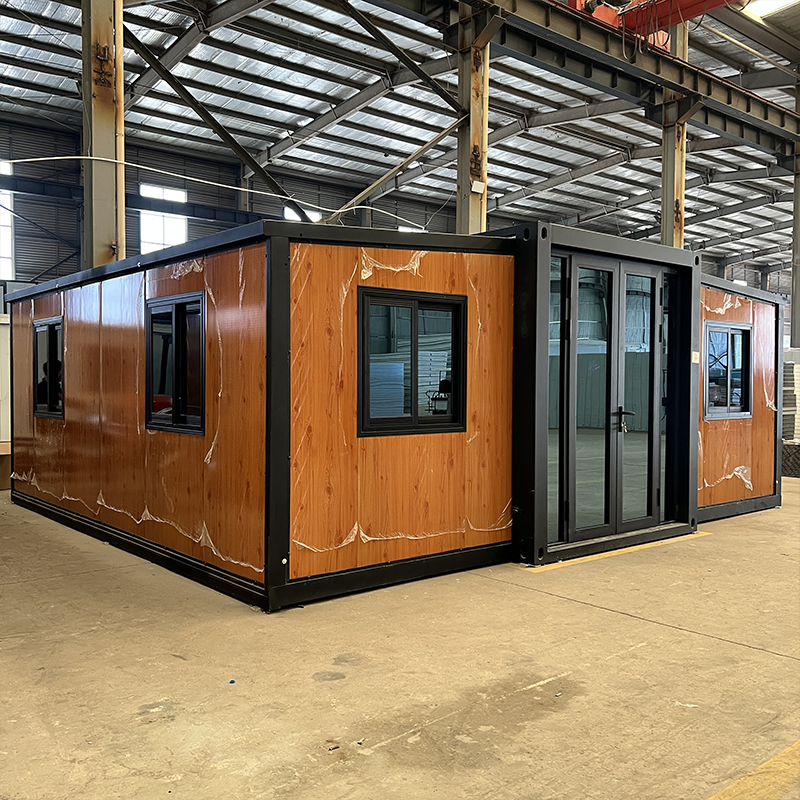

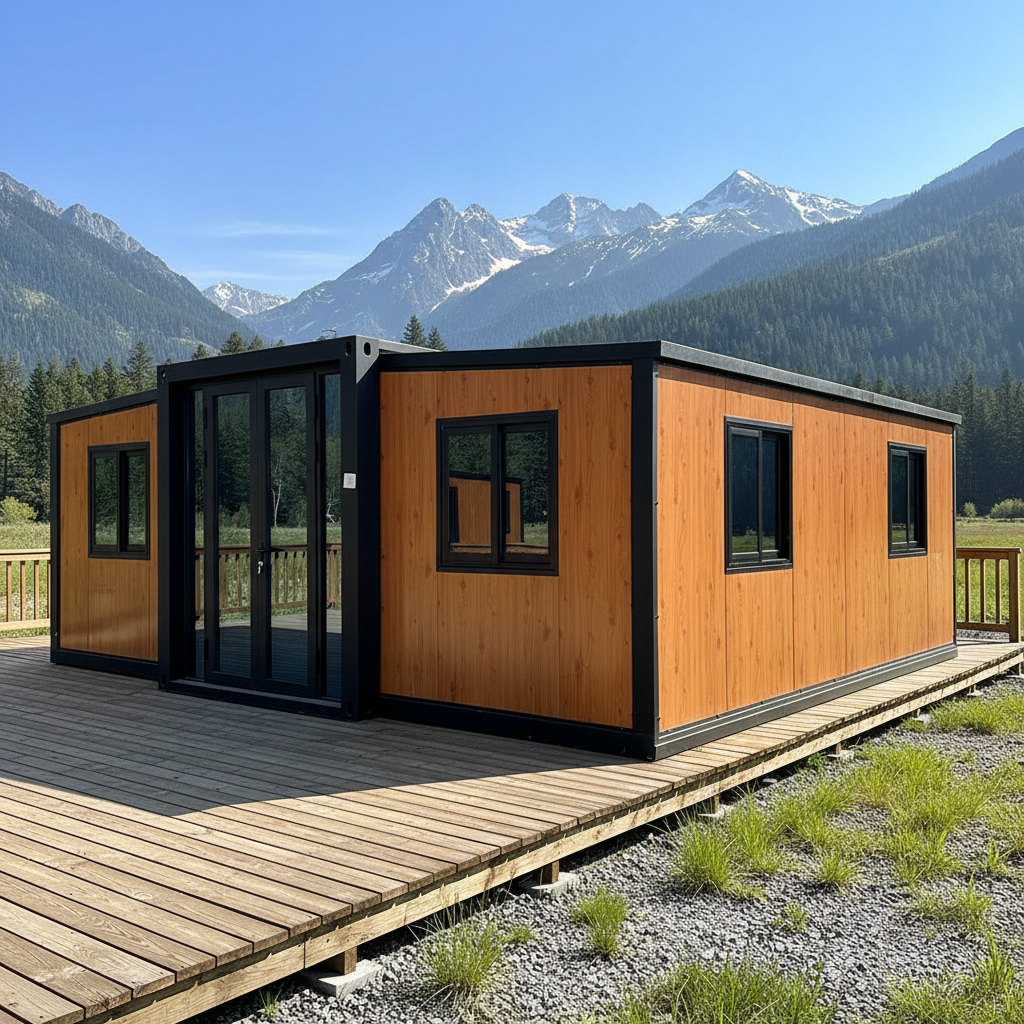

When fully expanded, the outer dimensions are L5900mm * W6300mm * H2480mm, with an internal space of L5640mm * W6140mm * H2240mm. When folded for transport or storage, its size is compact at L5900mm * W2200mm * H2480mm.
The house uses high-quality sandwich panels for insulation. The outer wall panels are 70mm thick with a wood grain color finish and EPS as the standard insulation core. The partitions and roof sections are built with 50mm thick sandwich panels featuring double-sided color steel plates.
Yes. While our standard specification is set to Australian standard wiring (including standard three-hole sockets, 6 LED ceiling lights, and a full circuit breaker system with leakage protectors), the system can be customized to comply with the electrical regulations and standard sockets of your specific country.

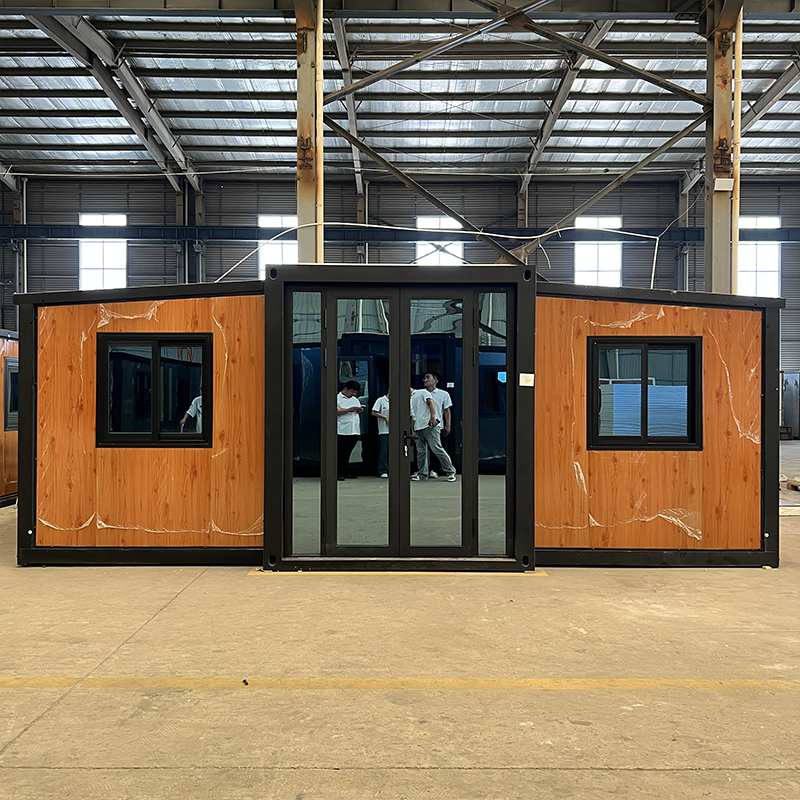

The entrance door features standard thermally-insulated aluminum frames with double-glazed tempered glass and a protective blue window film, designed to open outwards. The windows are standard aluminum alloy sliding windows (920*920mm, 6 pieces) featuring double-glazed tempered glass with blue film and diamond security mesh.
The total weight of the standard 20-FT expansion house is approximately 2500 KG. It features a heavy-duty framework of Q235 galvanized square tubes (main beam size 80*100*2.5mm) and integrated folding column heads to ensure structural stability on level, solid ground or concrete foundations.
