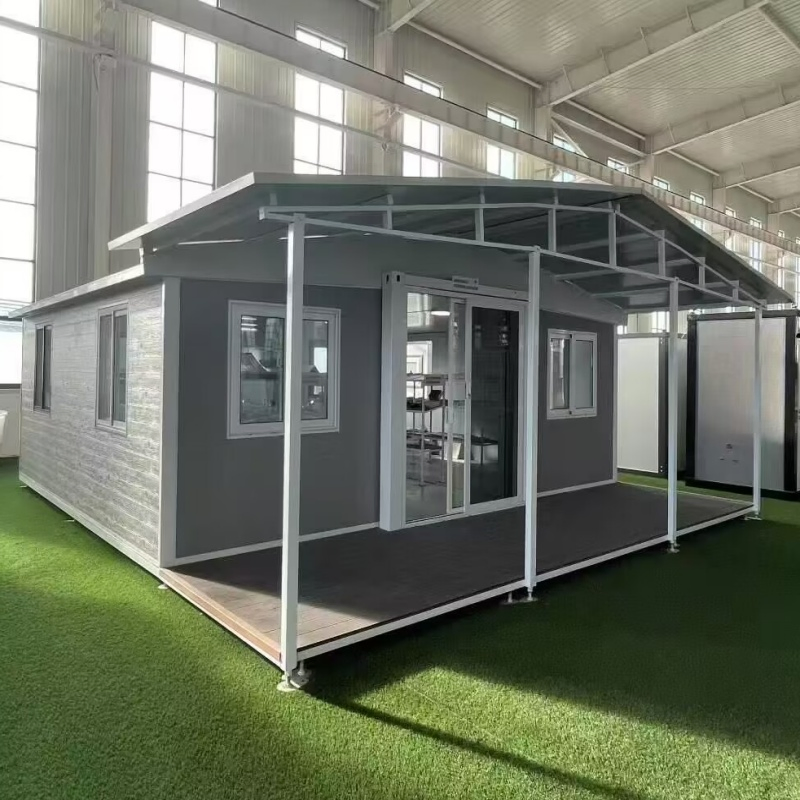

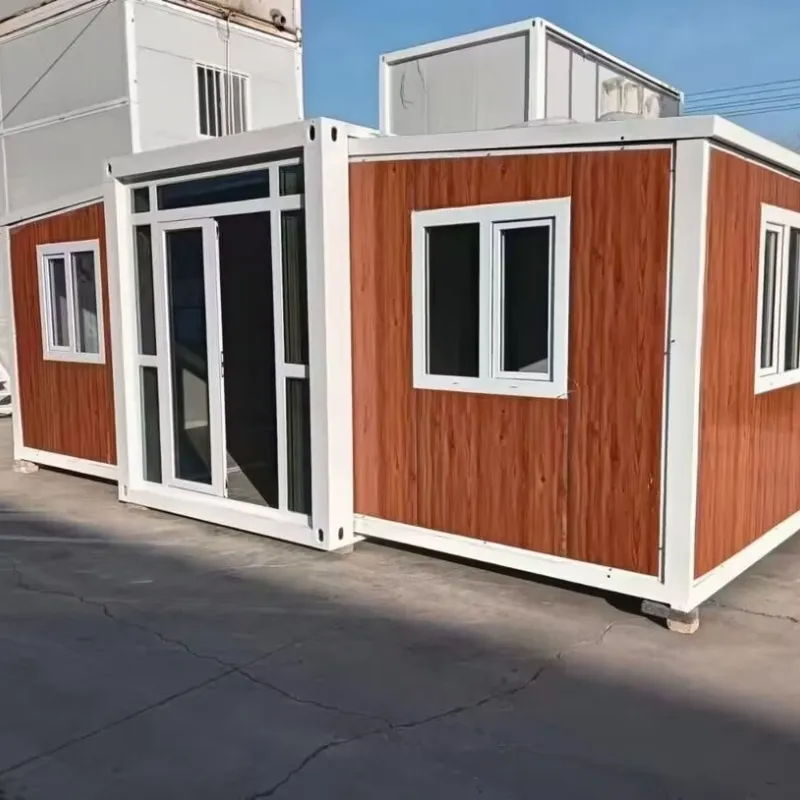

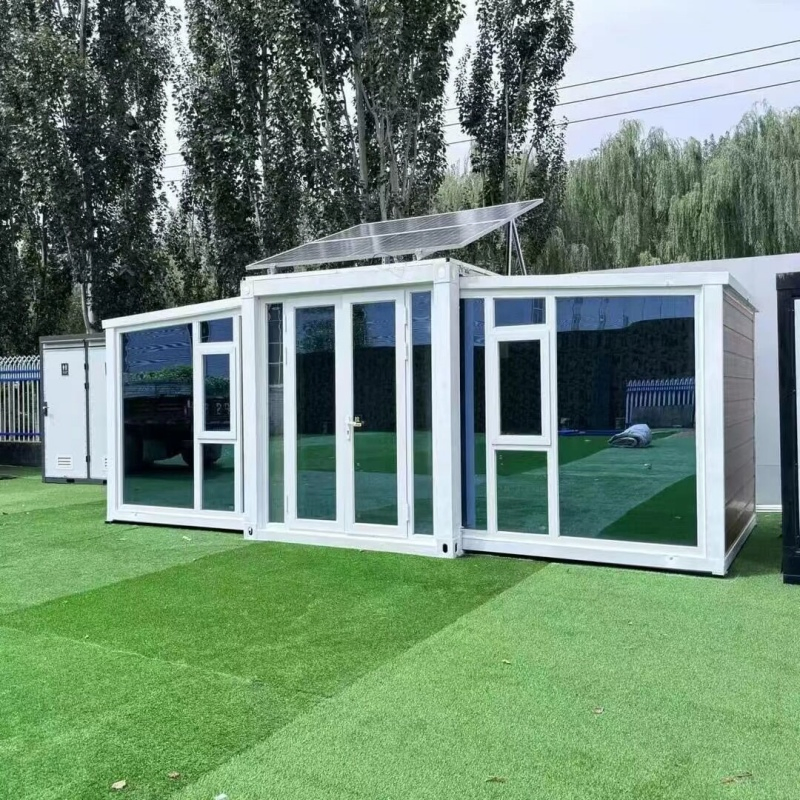

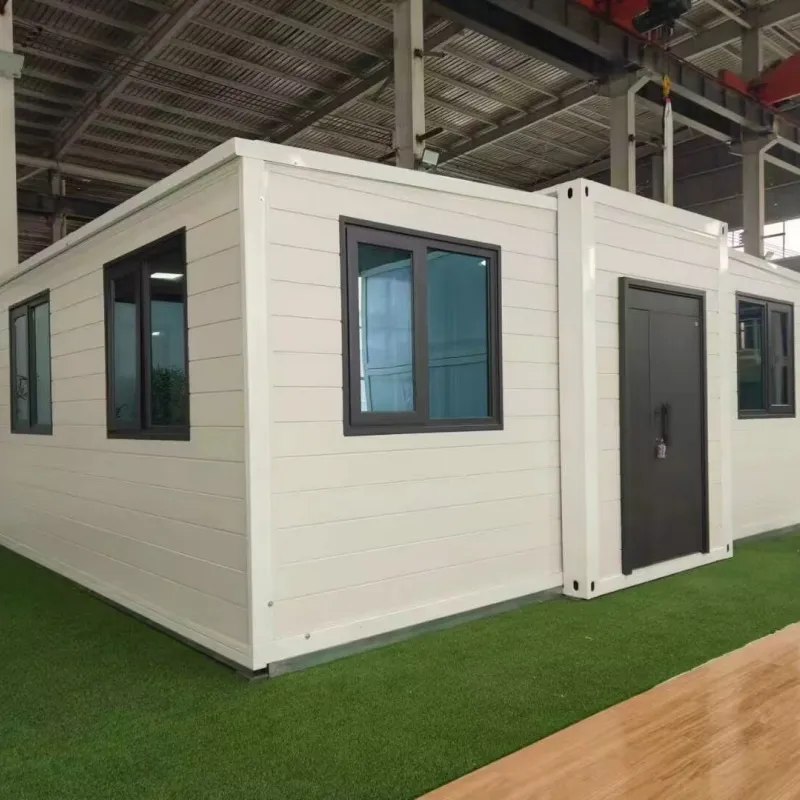

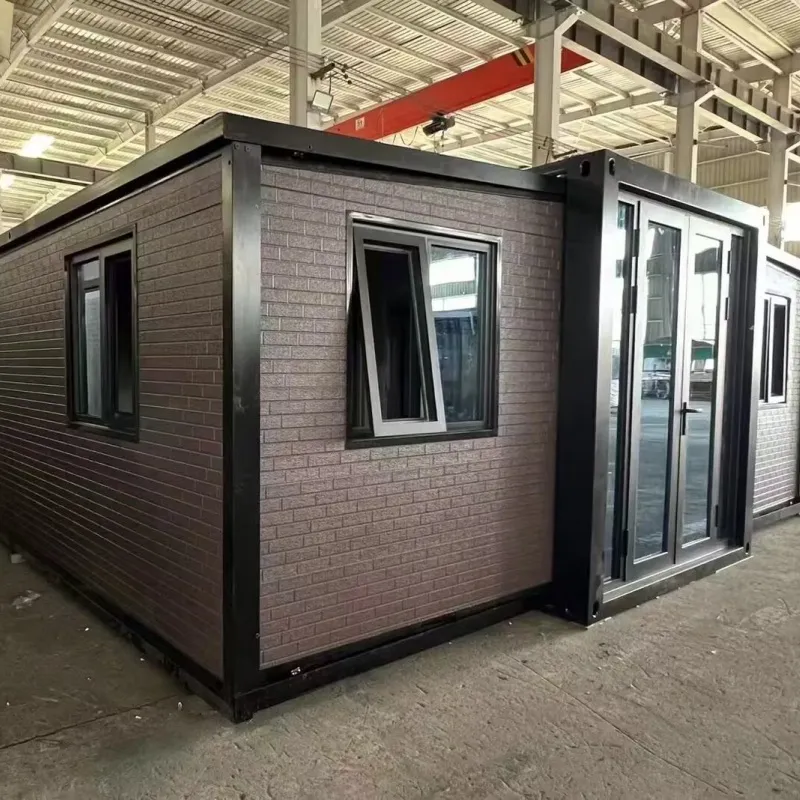

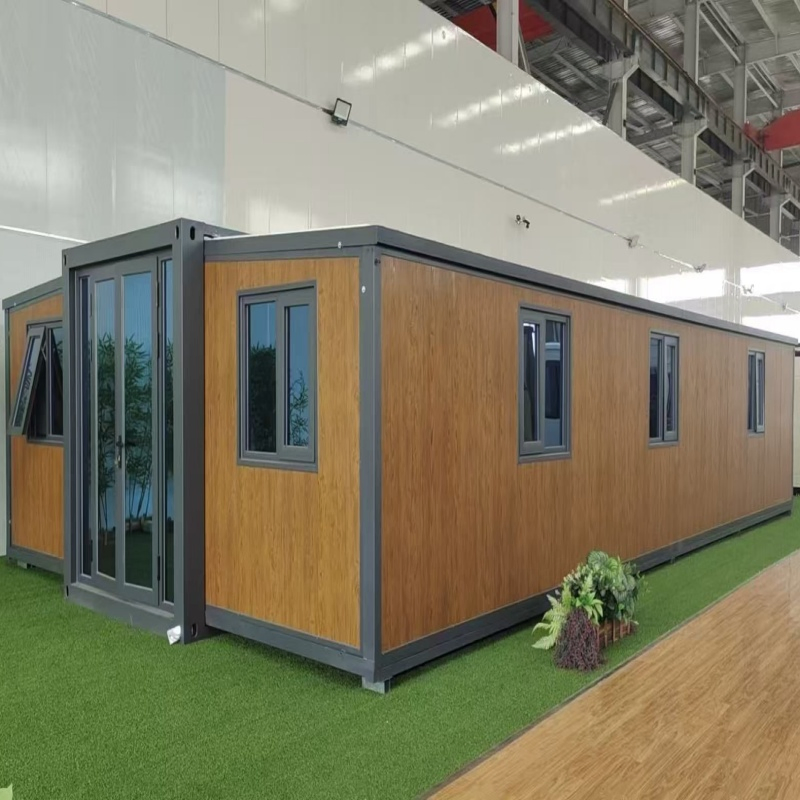

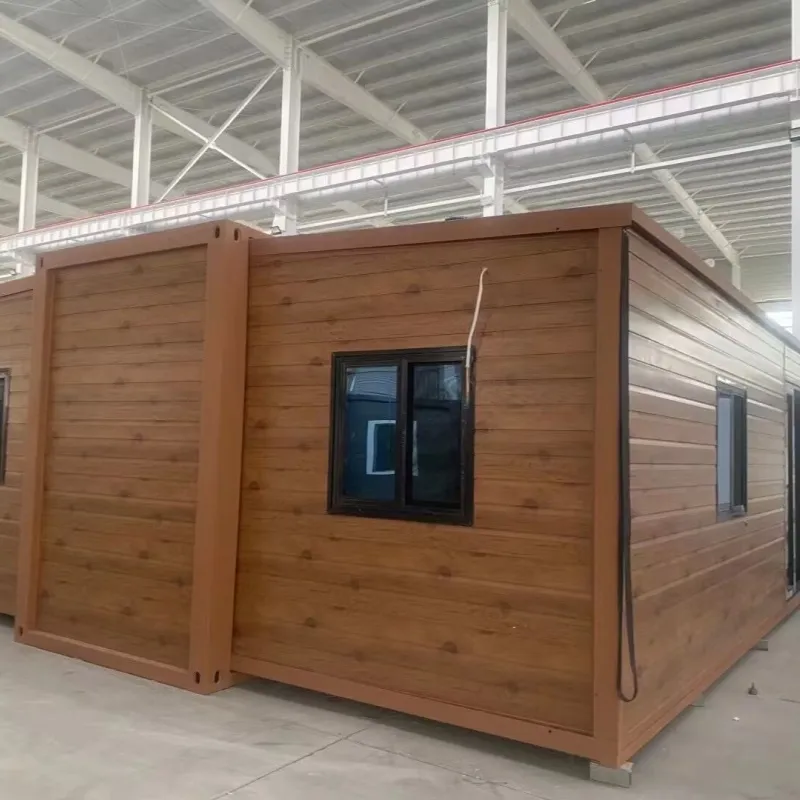

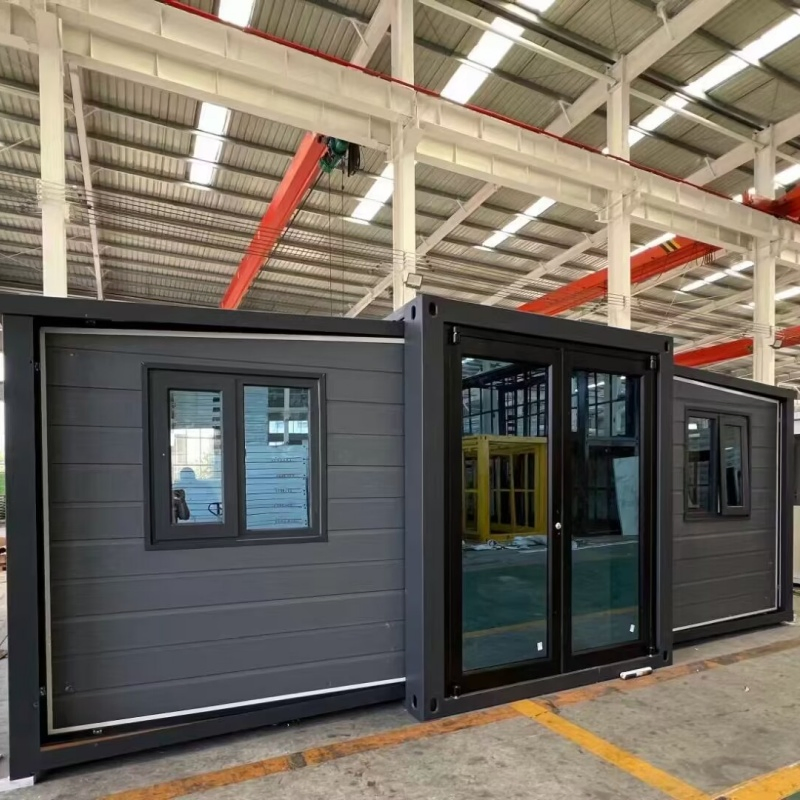

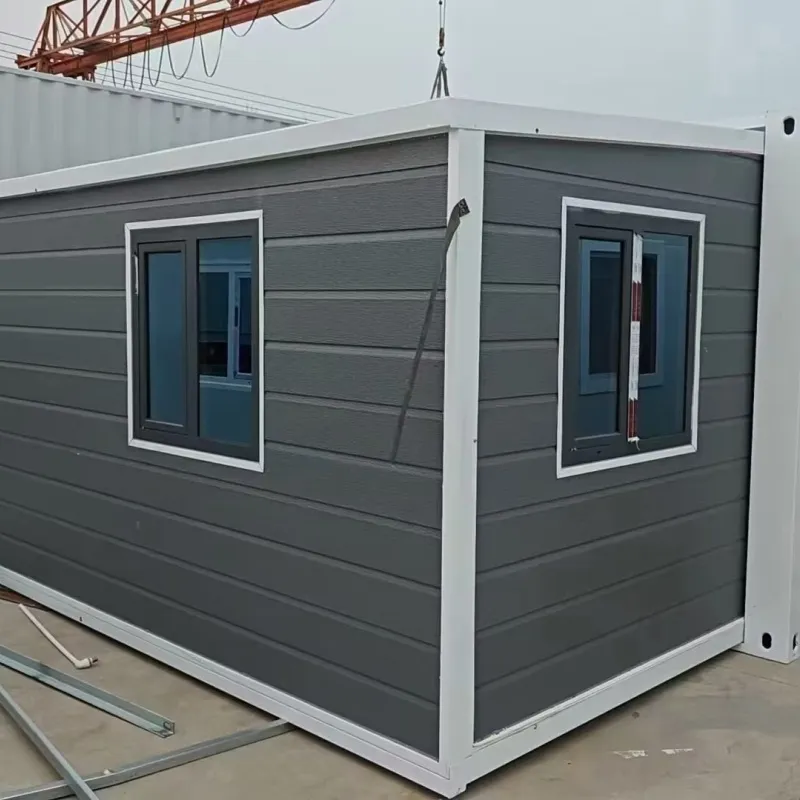

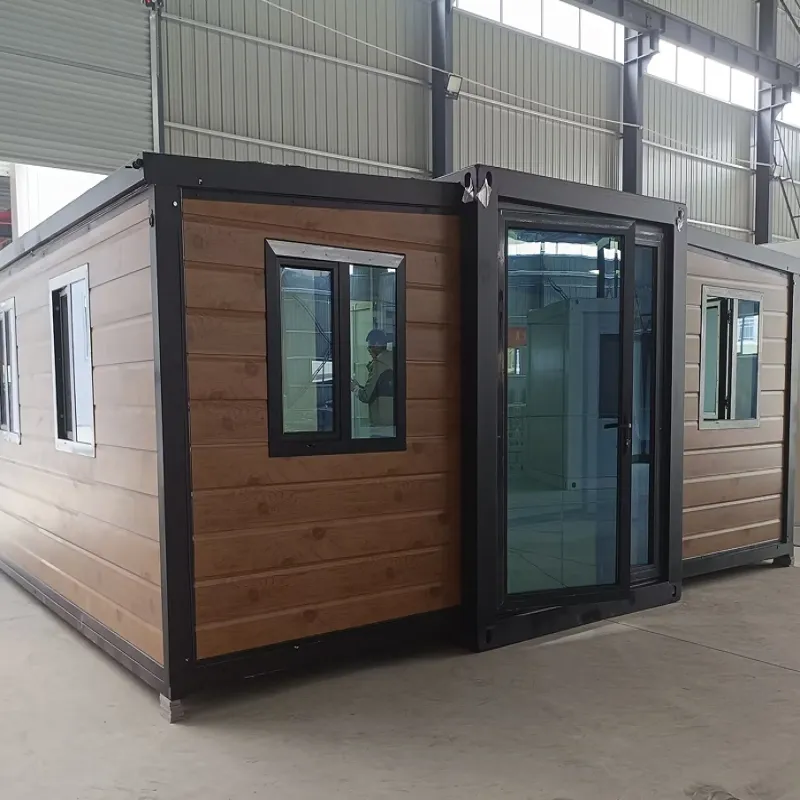

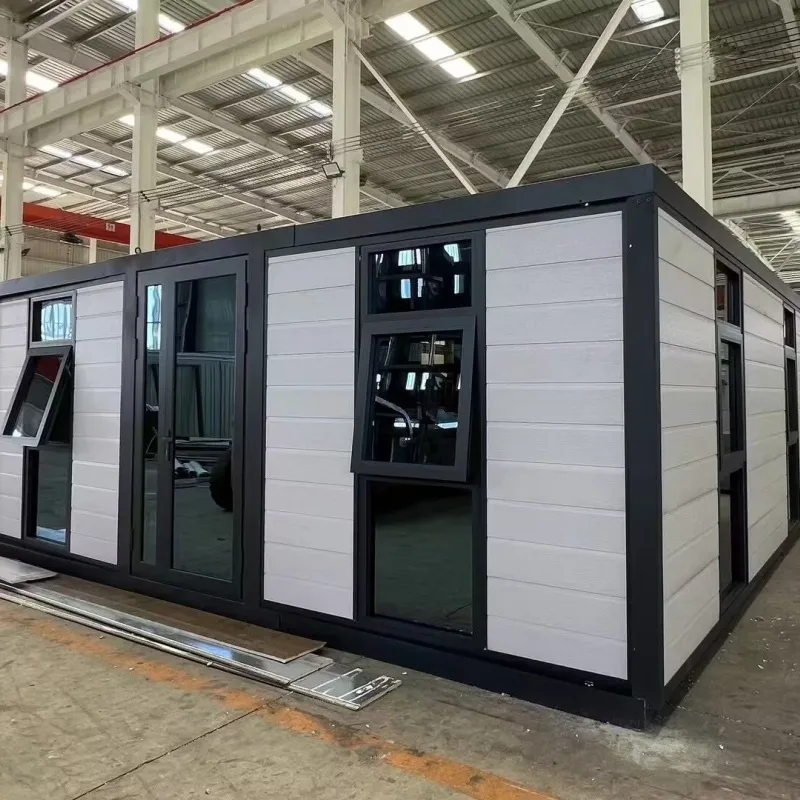

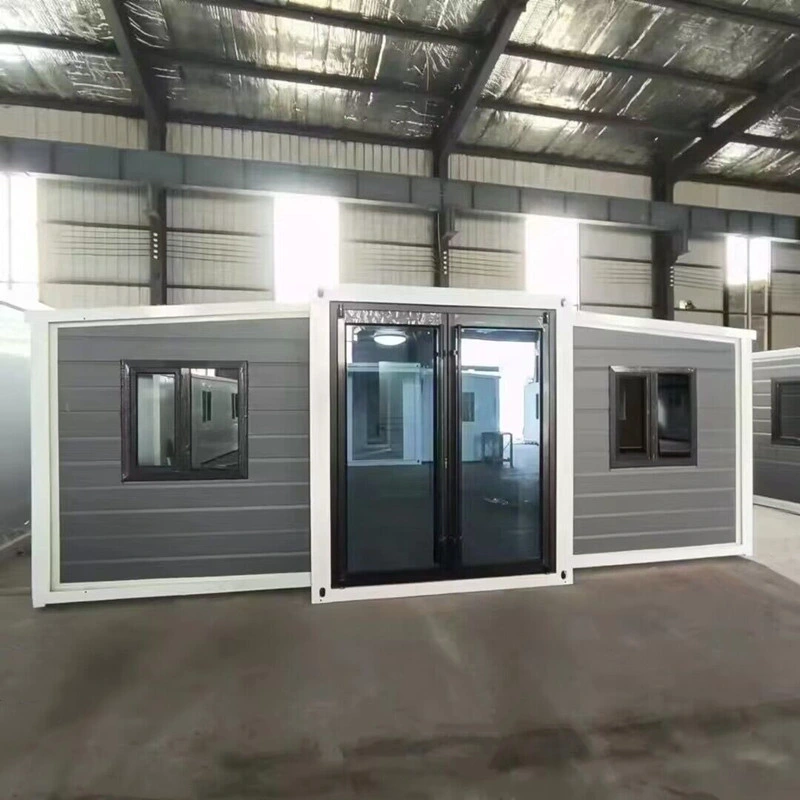

20FT 30FT 40FT Folding Modular Home Expandable Container House with Solar Energy System

1 / 5

20FT 30FT 40FT Folding Modular Home Expandable Container House with Solar Energy System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO. Customized/5950*2435*2896mm

Size 20FT, 40FT, 40hq, Customized

Body Structure Prefabricated Light Steel Structure

Frame Galvanized Steel Structure

Suitable Temperature -50c to +50c

Flooring PVC, Plywood or Customized

Electricity System 2 Lights & 1 Switch

Window 3/PVC Sliding Windows

Wind Load 210 Km/H

Earthquake Resistance 8 Degree

Package Bulk Package or Flat Package

Connection All by Bolt

Installation Install on Site, Fast and Easy

Insulation EPS/ PUR /PIR /Rockwool

Storey Less Than 3 Storeys

Designed Service Life 30 Years

Transport Package Export Seaworthy Packing

Specification 6055*2435*2896mm

Origin China Mainland

HS Code 94060000

Production Capacity 3000units/Month

Product Description

1. Container house brief introduction

Container house is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.

2. Container house characteristics

Good ability to assemble and disassemble for several times without damage.
Could be lifted, fixed and combined freely.
Heatproof and waterproof.
Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)
Service life can reach up to 10 - 15 years
We can provide the service of installation, supervision and training by extra.

3. Container house usage

It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.

4. Container house main structure and installation

Flat Pack Container is 6.055m*2.435m*2.896m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6 workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires runs over ceiling, including DB, breaker, power inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!

Category & System		Standard Specifications & Parameters
Standard accessory	Roof System	Q345B steel structure + two-sides 0.45mm steel sheets + 70mm PU foaming integrated formed roof + Electrical tube and wiring + outdoor connection socket + distribution box
	Chassis System	steel structure chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation optional)
	Chassis System	Permitted loading: > 2.5KN/m²
	Wall System	50/75/100mm EPS sandwich panel, rock wool sandwich panel, glass fiber sandwich panel, or PU sandwich panel
	Door System	Steel door / Fire-proof door / Sandwich panel door
	Window System	Aluminum alloy shutter window and the plastic-steel window, single or double glass
	Floor System	PVC, plywood or customized
Option	Drainage system	Provided plan, design and construction
Option	Electric system	Provided plan, design and construction
Technical parameter	Resistant temperature	-40ºC to 40ºC
	Wind resistance	210km/h
	Earthquake resistance	Grade 8

Frequently Asked Questions

What are the main applications of these container houses?

Container houses are heatproof and waterproof. They are widely used as site offices, site living rooms, meeting rooms, dormitories, shops, toilets, kitchens, shower rooms, and storage spaces.

How long is the service life of a flat pack container house?

The designed service life of the main steel structure is up to 30 years, and it can be assembled and disassembled more than 6 times with a service life of approximately 10 to 15 years under typical usage conditions.

How fast is the installation process?

The installation is fast and easy. Six workers can install one standard unit (6.055m * 2.435m * 2.896m) in approximately 2 hours.

What are the structural resistance capacities against wind and earthquakes?

Our container houses are built with a robust galvanized steel structure, allowing them to resist winds up to 210 Km/H and handle Grade 8 earthquake conditions.

What insulation materials are available for the sandwich panels?

We offer multiple insulation options including EPS (Expanded Polystyrene), PUR (Polyurethane), PIR (Polyisocyanurate), and Rockwool depending on your climate requirements.

Can these container houses be stacked to save space?

Yes, our container houses feature a fully welded top frame and truss structure which allows them to be safely stacked up to 3 storeys.

Product Detail

20FT 30FT 40FT Folding Modular Home Expandable Container House with Solar Energy System
