We are a global leader in prefabricated construction, offering end-to-end solutions from design to after-sales service. We create innovative, high-quality modular homes that bring your vision to life worldwide.

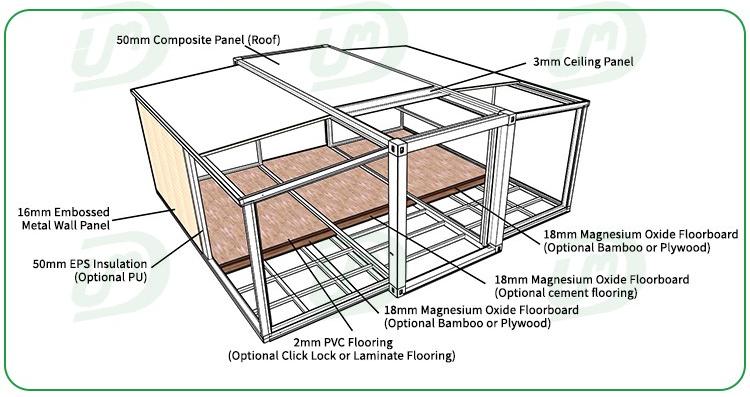

| Category | Component | Specification | Component | Specification |
|---|---|---|---|---|
| Frame Structure | Middle Roof Beam | T2.5mm Q235B | End Side Beam | t1.5mm Q235B |
| Middle Bottom Beam | T2.5mm Q235B | Middle Column | T2.5mm Q235B | |
| Side Wall Frame | t1.5mm Q235B | Lifting Lug | t4mm Q235B | |
| Subframe | t1.5mm Q235B | Folding Hinge | 13mm Galvanized Hinge | |
| Central Cabinet Top/Bottom | 80*100mm | Full Frame Coating | Electrostatic Powder Coating / White Plastic Powder | |
| Side Cabinet Top/Bottom | 40*60*1.5mm Thick Square Tube | |||
| Roof Panel | External Roof Panel | 50mm Composite Panel | ||
| Interior Ceiling | 3mm Ceiling Panel | |||

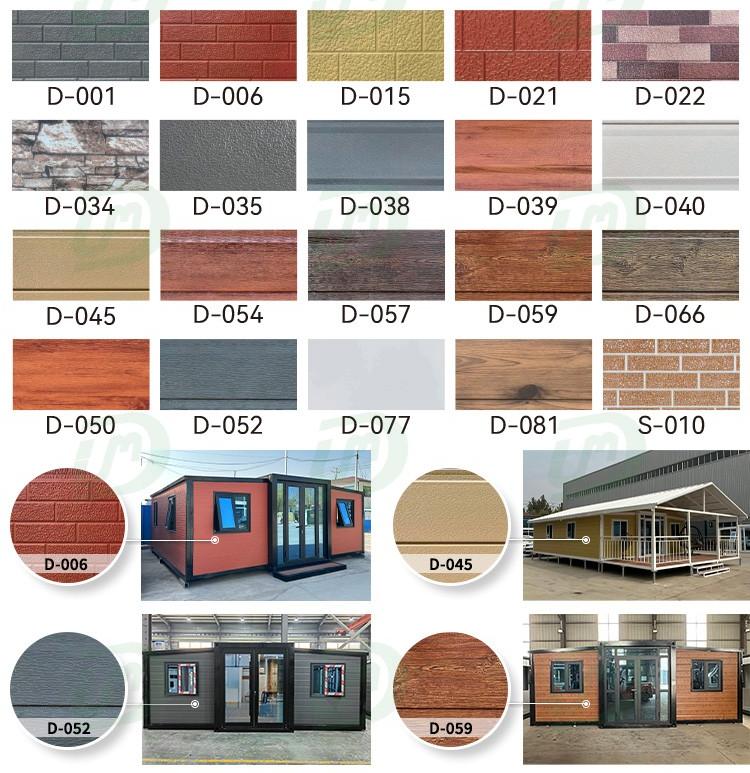

| Wall Panel | Exterior Wall Panel | 16mm Embossed Metal Wall Panel | ||
| Internal Partition | 50mm EPS Insulation (Optional PU) | |||
| Floor | PVC Flooring | 2mm PVC Flooring (Optional Click Lock or Laminate Flooring) | ||
| Flooring Base | 18mm Magnesium Oxide Floorboard (Optional Bamboo or Plywood) | |||

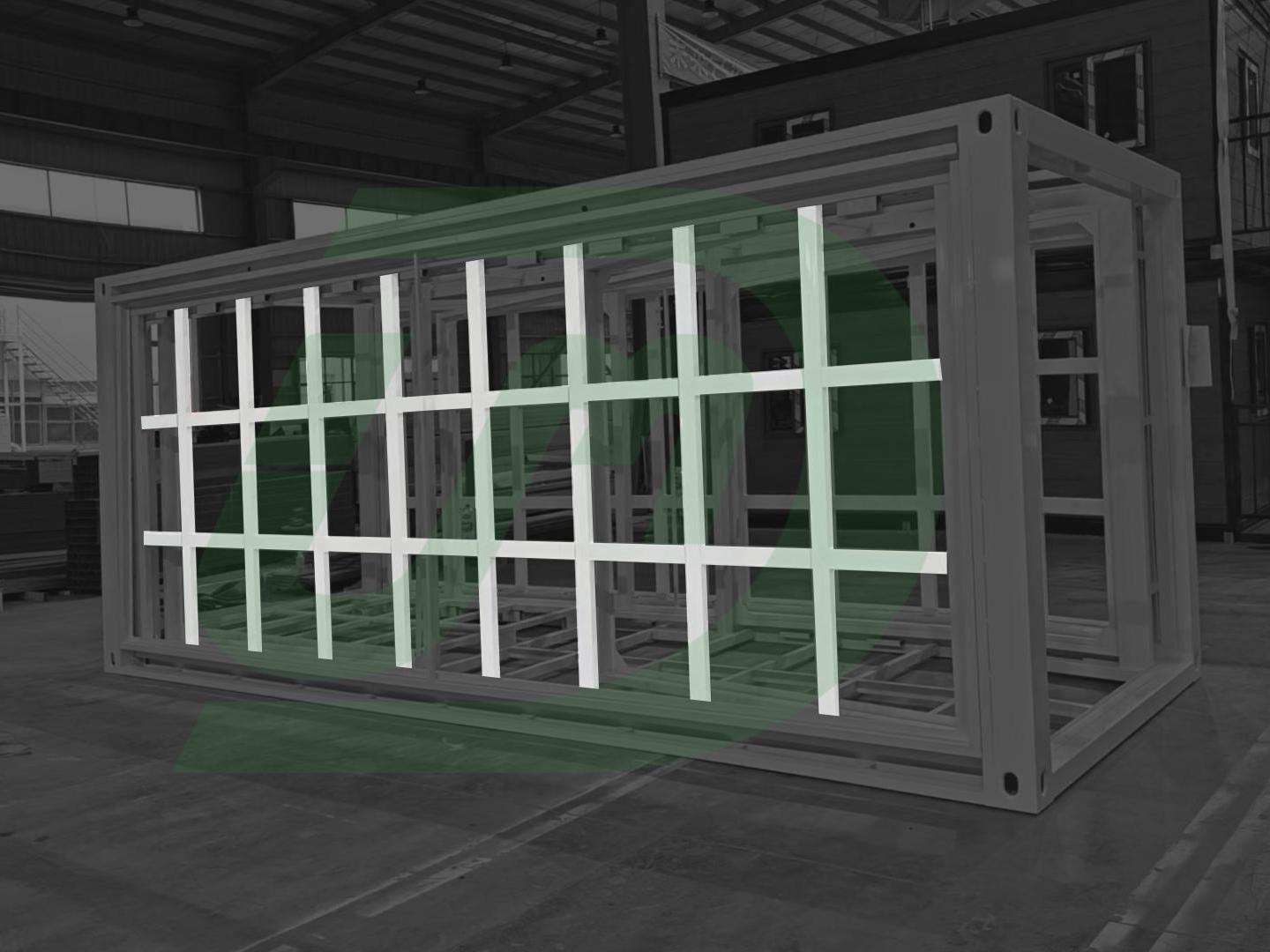

Densely spaced square tubes for better stability — no floor shaking, stronger structure.

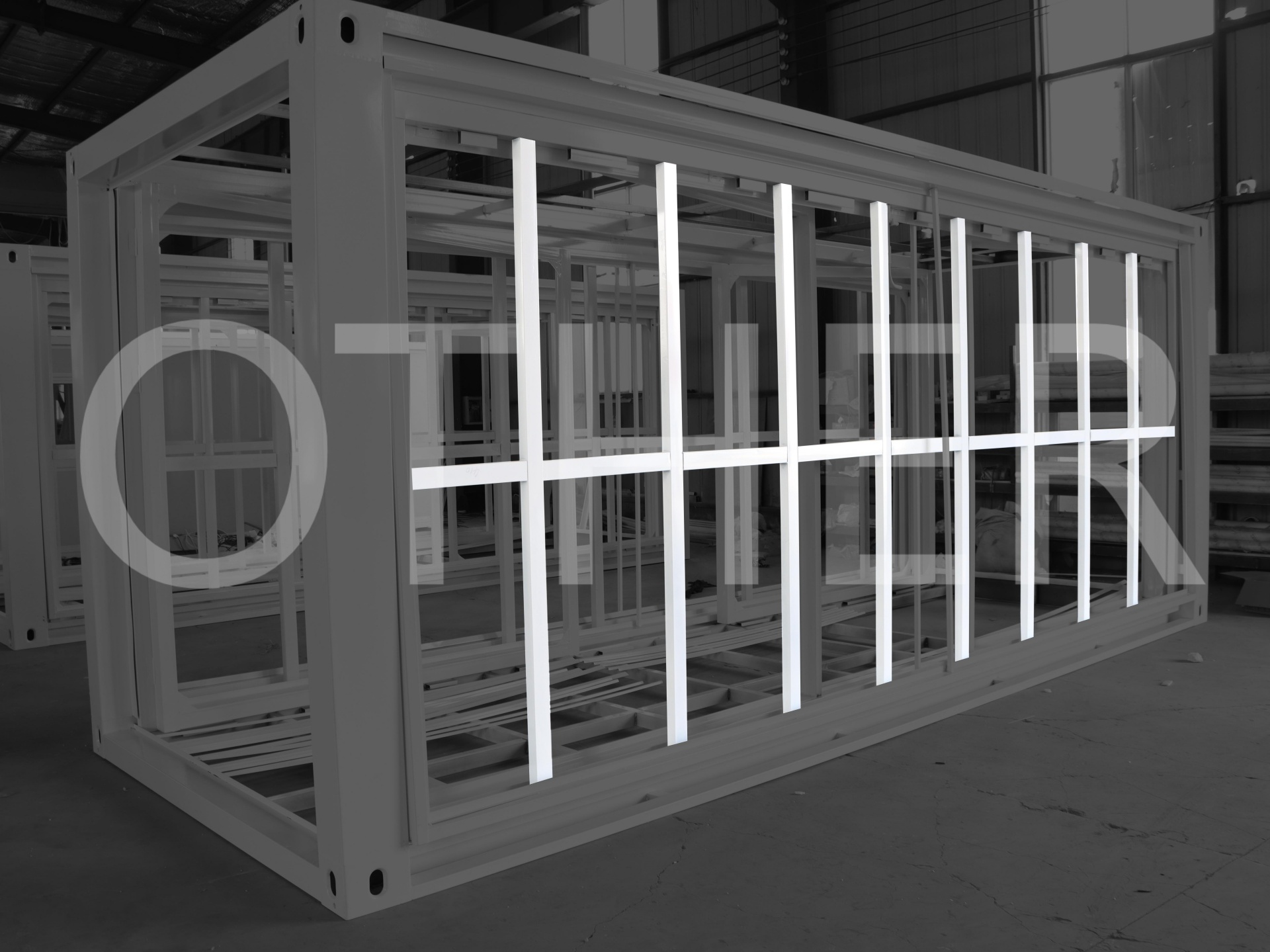

Fewer square tubes to save costs — weaker frame, unstable floors, shorter service life.

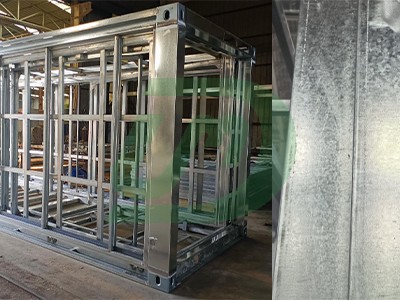

Fully galvanized steel with electrostatic powder coating — anti-rust, anti-corrosion, highly durable.

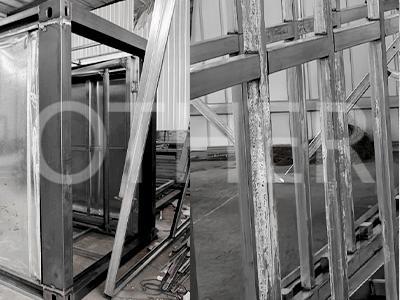

Use untreated black steel to cut costs — prone to rust, corrosion, and shorter lifespan.

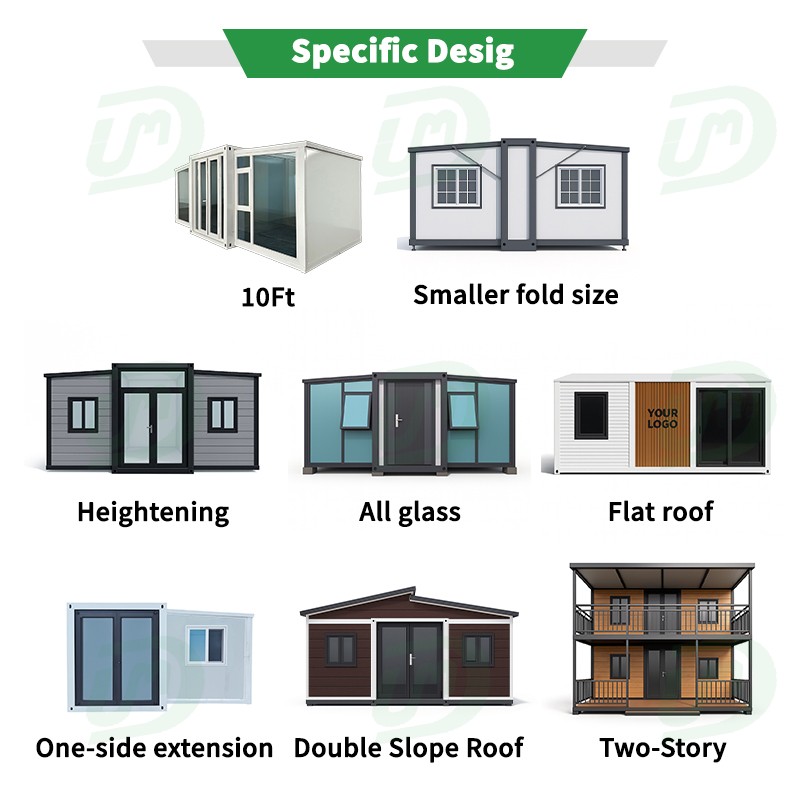

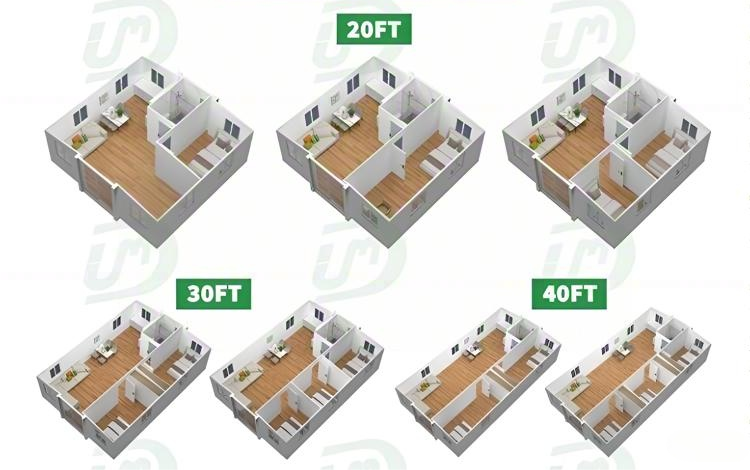

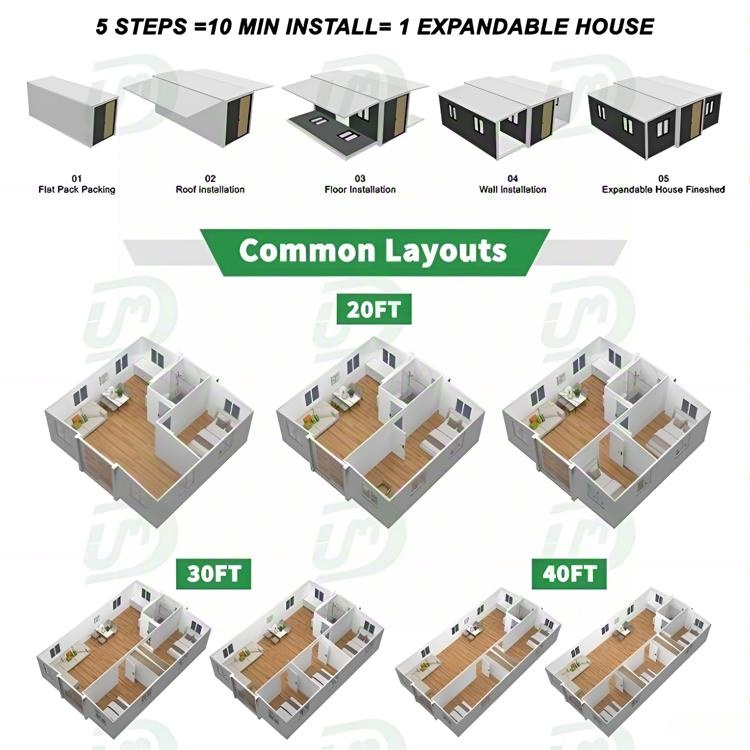

All sizes of expandable home layouts are fully customizable to suit your needs

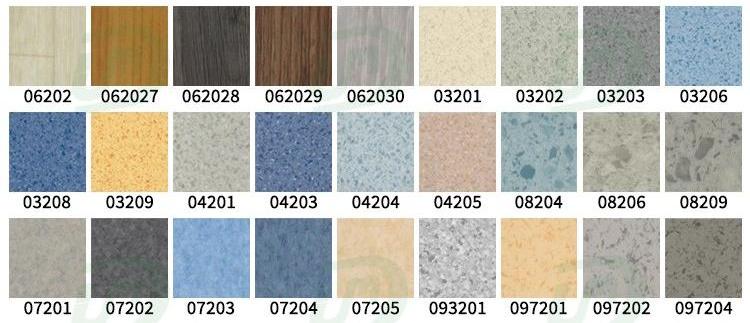

A variety of flooring options available, including WPC, SPC, and PVC-fully customizable to match your style and needs.

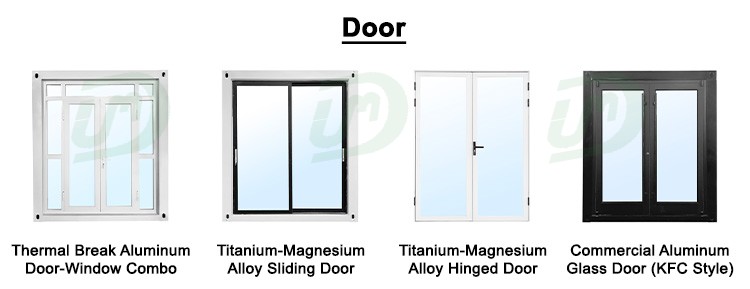

① Titanium-Magnesium Alloy Hinged Door | ② Titanium-Magnesium Alloy Sliding Door
③ Thermal Break Aluminum Door-Window Combo | ④ Commercial Aluminum Glass Door (KFC Style)

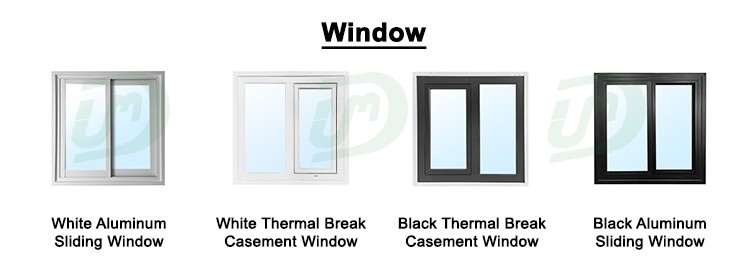

① White Aluminum Sliding Window | ② White Thermal Break Casement Window
③ Black Thermal Break Casement Window | ④ Black Aluminum Sliding Window

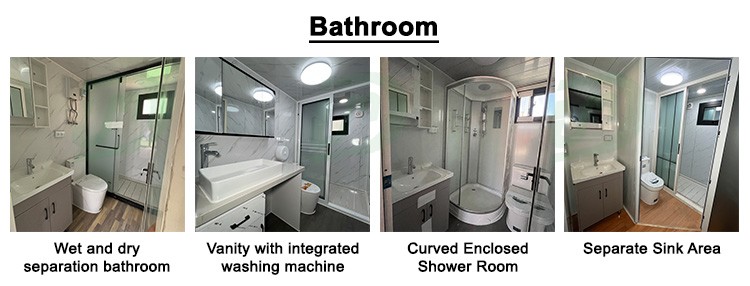

① Wet and dry separation bathroom | ② Vanity with integrated washing machine
③ Curved Enclosed Shower Room | ④ Separate Sink Area

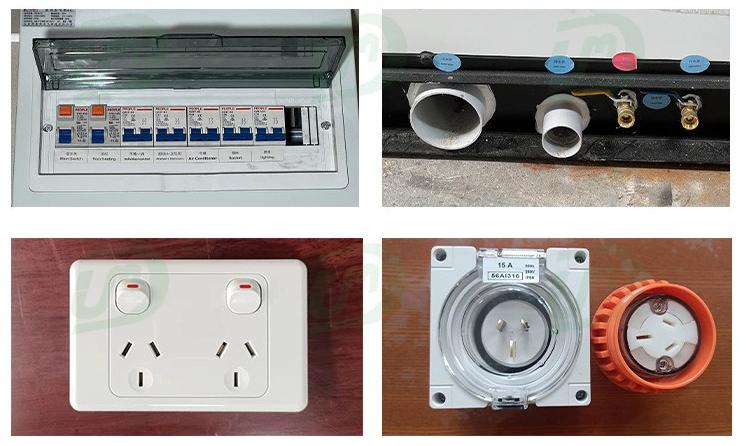

We provide sockets that meet your country’s standards, and the drainage system can be fully customized to suit your specific requirements.

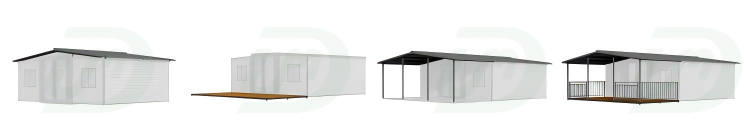

Gable Roof / Deck / Canopy / Terrace

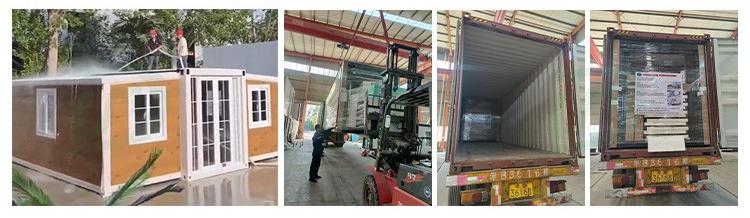

We guarantee the following inspections before shipping:

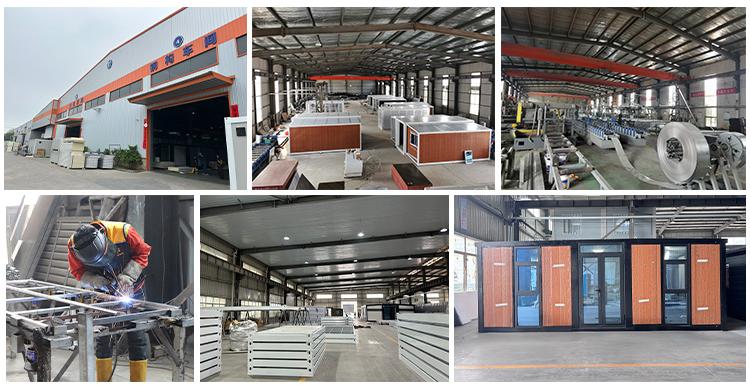

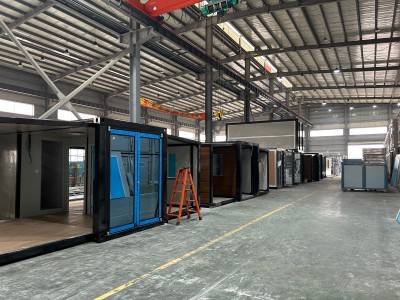

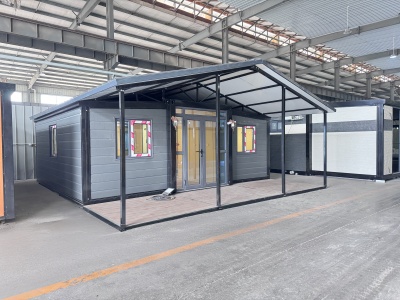

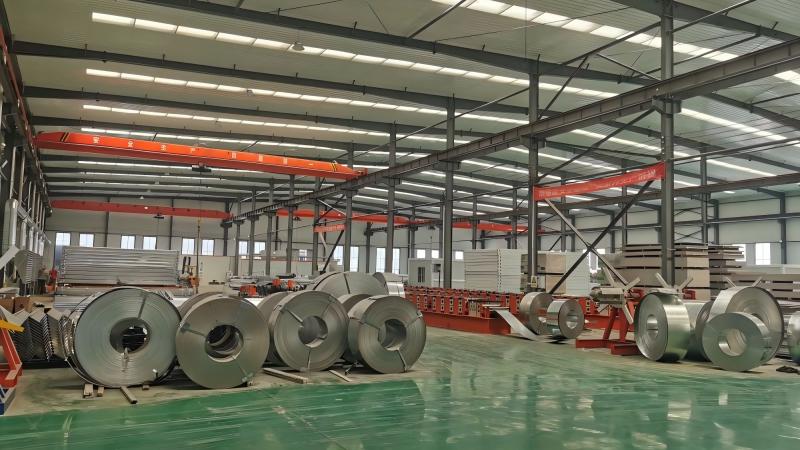

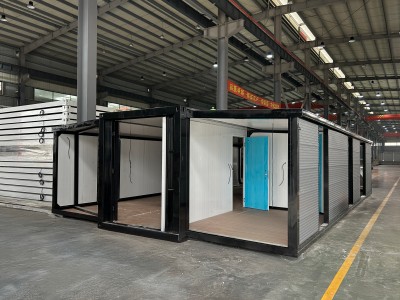

We invite you to tour our state-of-the-art facilities and see our high-quality production process firsthand. Our team will guide you through each stage, from design to assembly, and discuss how we can collaborate to meet your needs.
We look forward to welcoming you to our factory.
We are committed to expanding our presence in the global market by actively participating in key trade exhibitions worldwide. These events offer us the opportunity to connect with partners, showcase our innovative products, and stay at the forefront of industry trends.
Join us at the next exhibition and discover how we can collaborate to create outstanding solutions.
