| Basic Features | |||
|---|---|---|---|

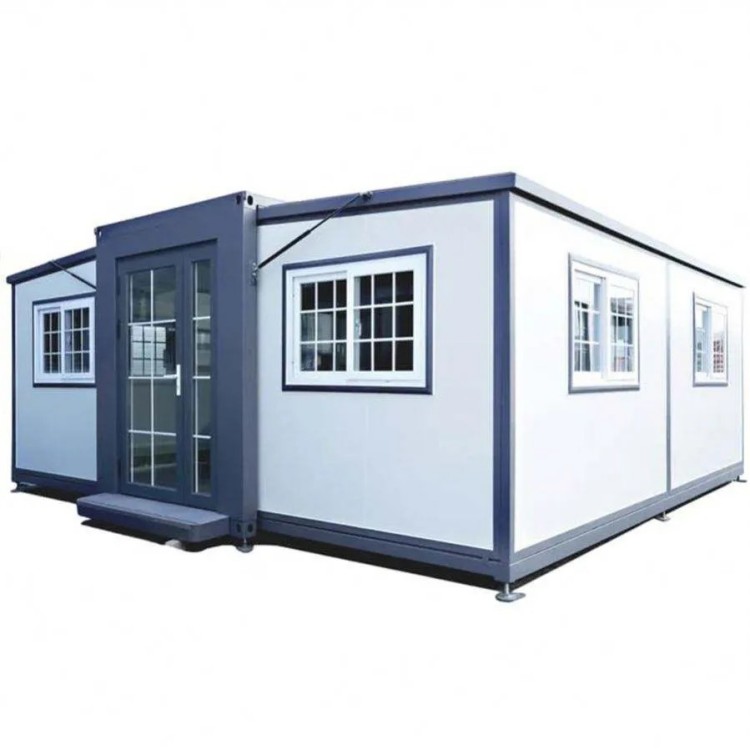

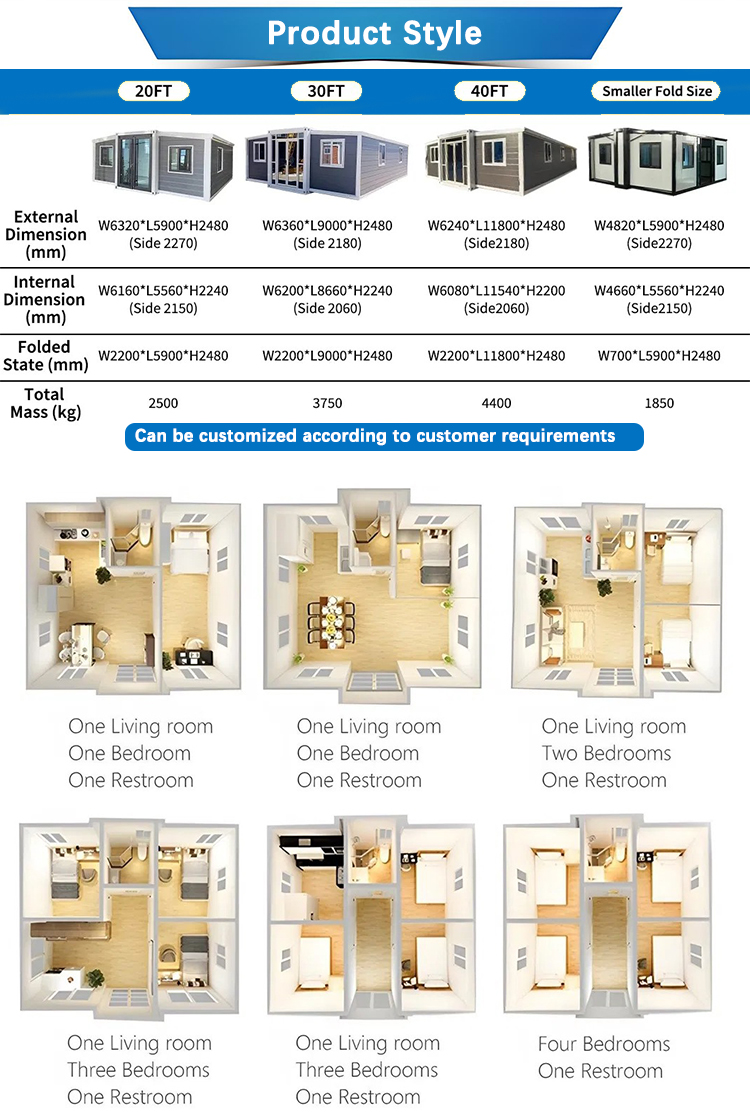

| Product model | 20 feet | House type | One Hall |

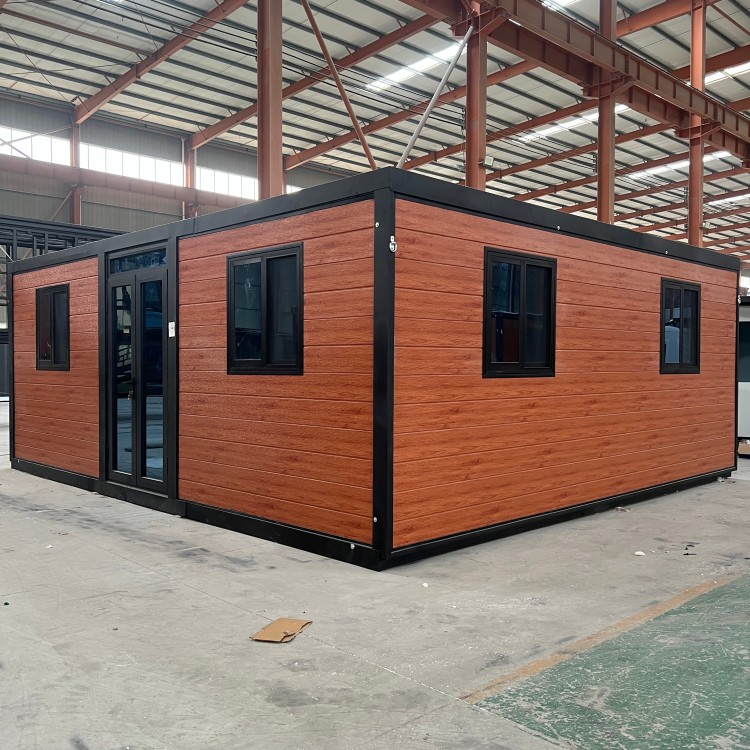

| Expanded size | L5900*W6300*H2480 | Number of people accommodated | 2-4 people |
| Internal dimensions | L5460*W6140*H2240 | Power consumption | 12kW |

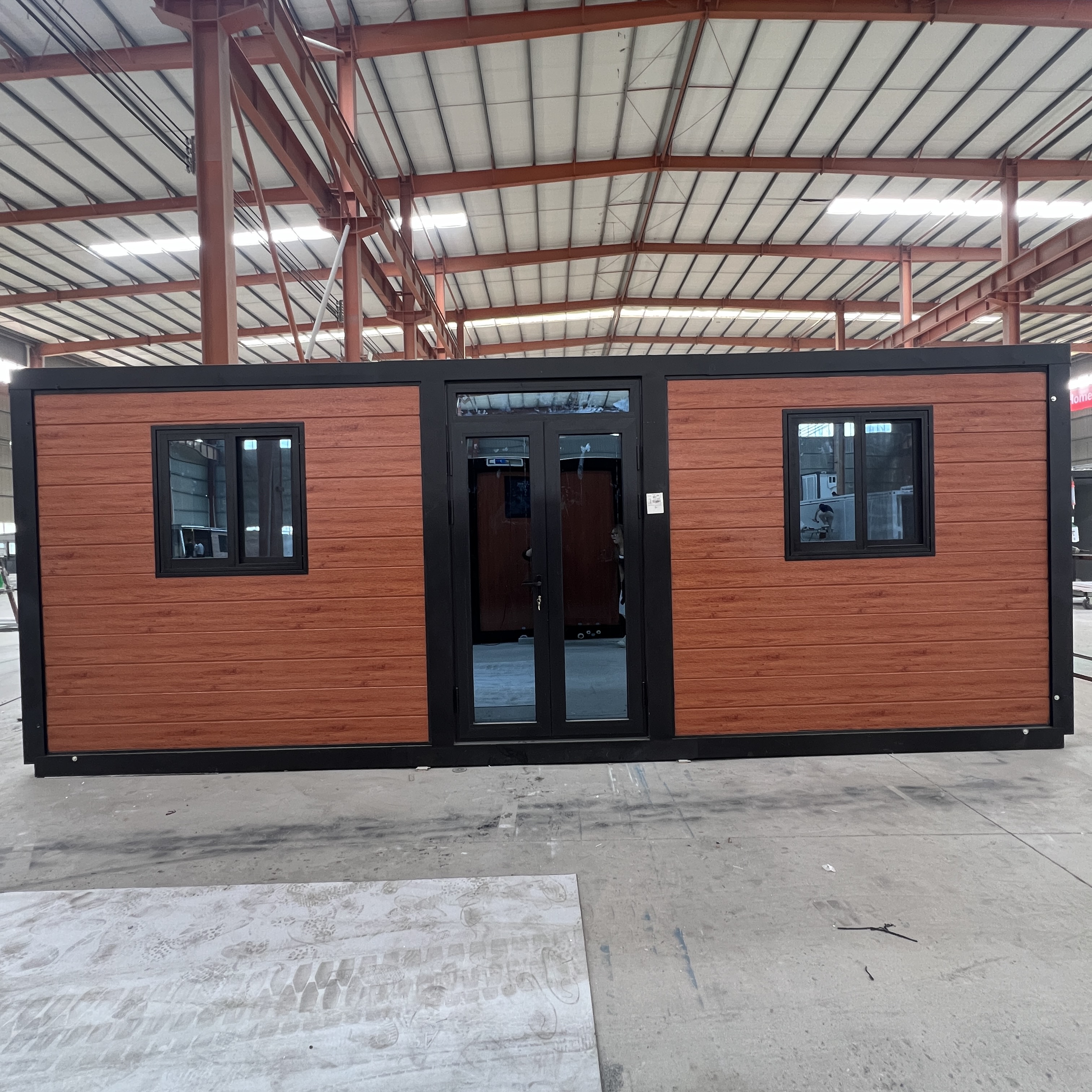

| Folded Size | L5900*W2200*H2480 | Total net weight | 2.8 tons |
| Floor area | 37m | ||

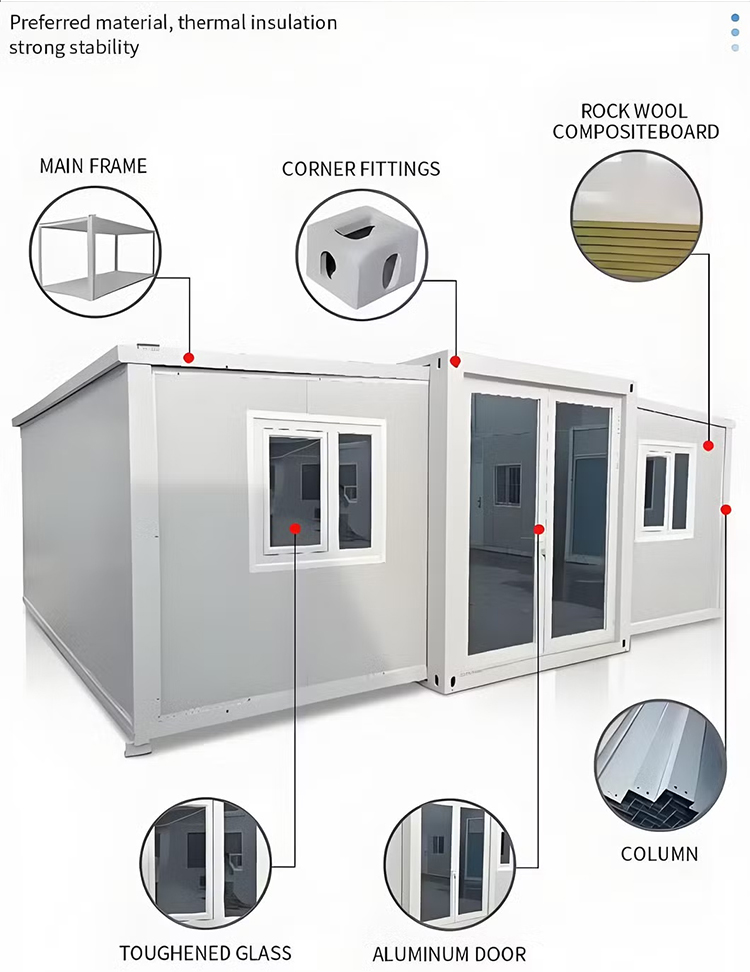

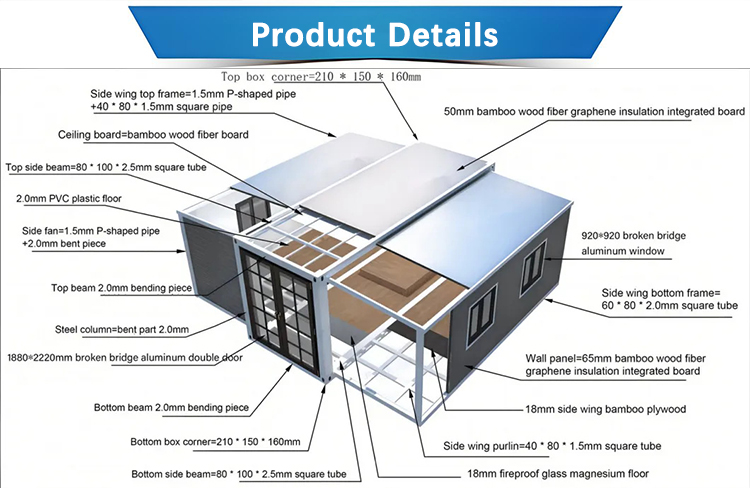

| Frame Structure Specifications | ||
|---|---|---|
| Category | Component | Specifications |
| Main frame (fully galvanized) |
Top side beam | 80*100*2.5mm Square tube |
| Top beam | Bending parts 2.0mm | |
| Bottom side beam | 80*100*2.5mm Square tube | |
| Bottom beam | Bending parts 2.0mm | |
| Galvanized hanging head | Galvanized hanging head 210*150*160 | |
| Steel column | Bending parts 2.0mm | |
| Side frame (fully galvanized) |
Top frame | 40*80*1.5mm P-shaped tube / 40*80*1.5mm Square tube |
| Bottom frame | 60*80*2.0mm Square tube | |
| Folding hinge | 130mm Galvanized hinge | |
| Overall framework protective coating | Spray | Electrostatic spray molding/straight white plastic powder |

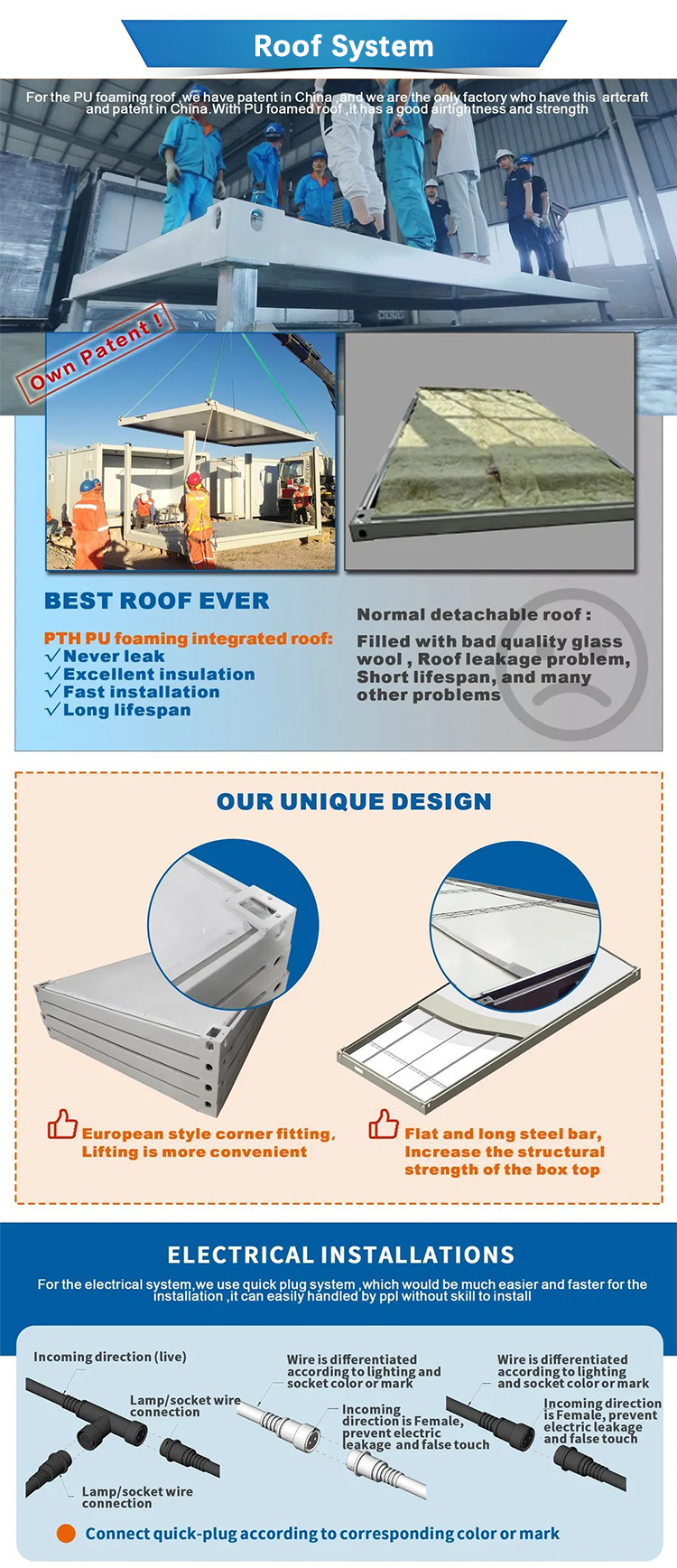

| Roof | External top plate | T50mm EPS color steel plate+corrugated veneer t0.4mm |
| Internal ceiling panels | 200 type ceiling panel | |
| Wallboard | Side walls, front and rear | T65mm EPS color steel plate |
| Inner partition board | T50mm EPS color steel plate | |
| Ground | Center floor | 18mm thick fireproof cement fiber floor |
| Floor on both sides | Bamboo plywood 18mm thick | |
| Doors and windows | Plastic steel sliding window | 920*920mm |
| Steel single door | 840*2030mm | |
| Electrical system | Circuit breaker system | One 32A leakage protector Voltage 220V, 50HZ |
| Light | Bull 3030 flat lamp, large ceiling lamp | |
| Socket | Standard international three hole and five hole sockets (socket standards can be configured according to customer requirements) | |
| Light Switch | Double open, single key switch (switch standard can be configured according to customer requirements) | |
| Wiring | Incoming Line 6, Air conditioning socket 4, Ordinary socket 2.5, Lighting 1.5. (Circuit that meets certification requirements can be customized according to the country) | |

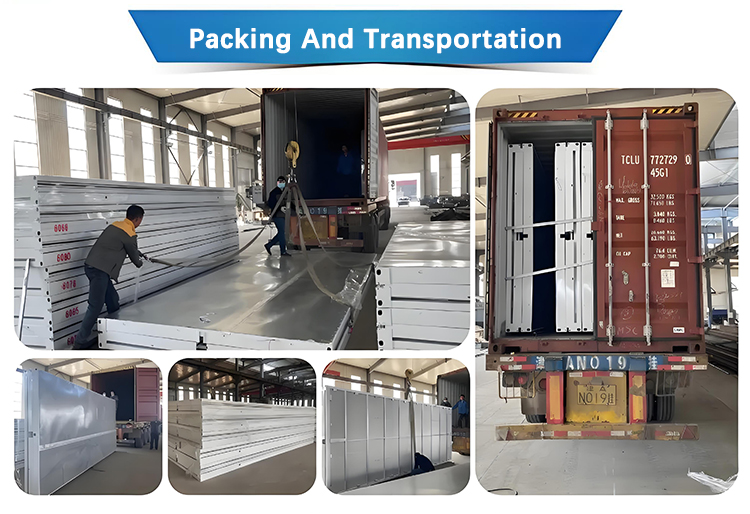

| Loading Quantity | Container Capacity | 1 40HQ shipping container can hold 2 sets |
