| Model | High Position | Low Position | Maximum Angle of the Back | Maximum Angle of the Knee | Self-Weight | Load Bearing | Packing | ||
|---|---|---|---|---|---|---|---|---|---|
| Qty | Size (L x W x H) | G.W | |||||||
| YDC-3K | 197 x 56 x 93 cm | 197 x 56 x 36 cm | 75° | 15° | 50 kg | 250 kg | 1 | 208 x 66 x 62 cm | - |

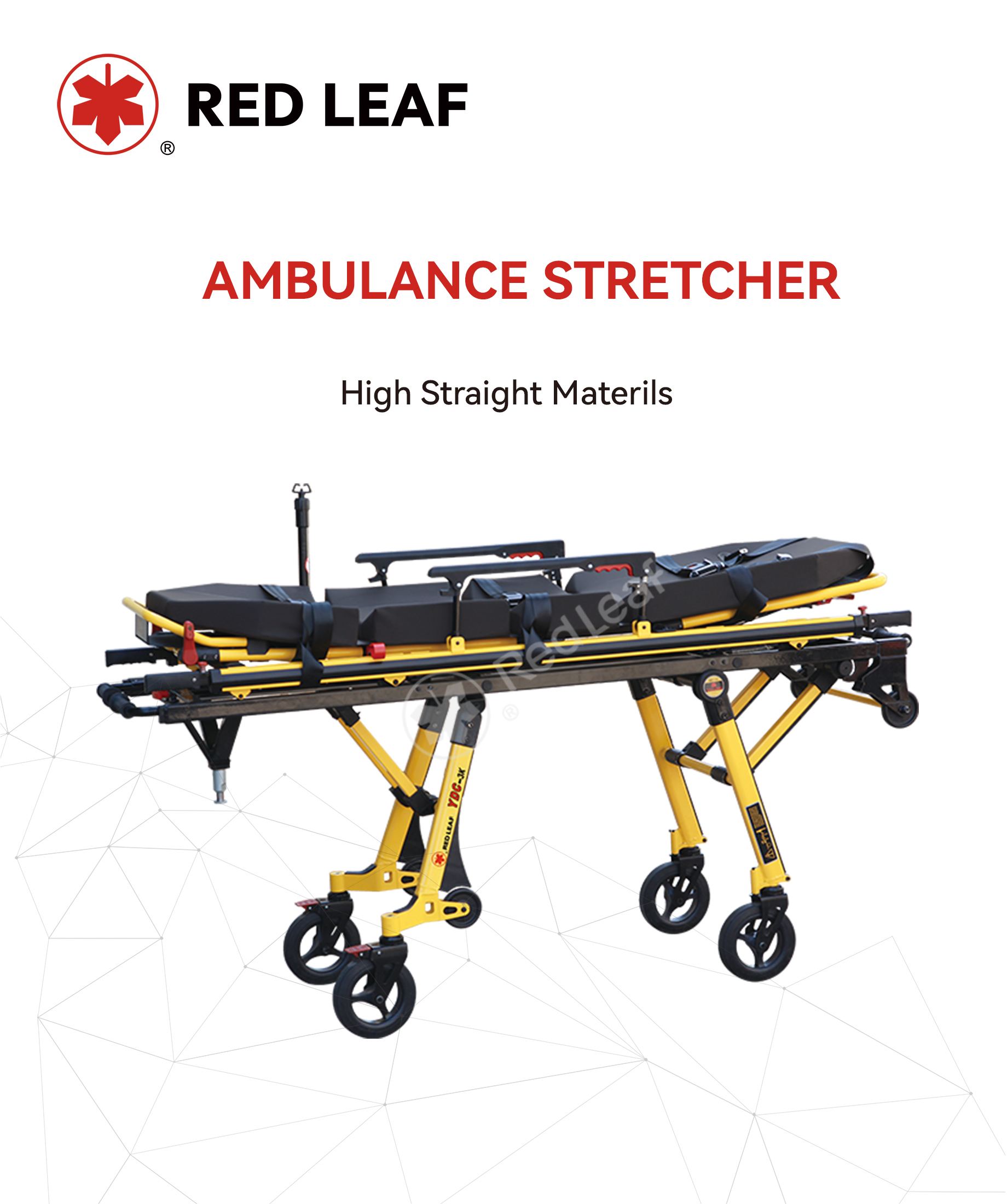

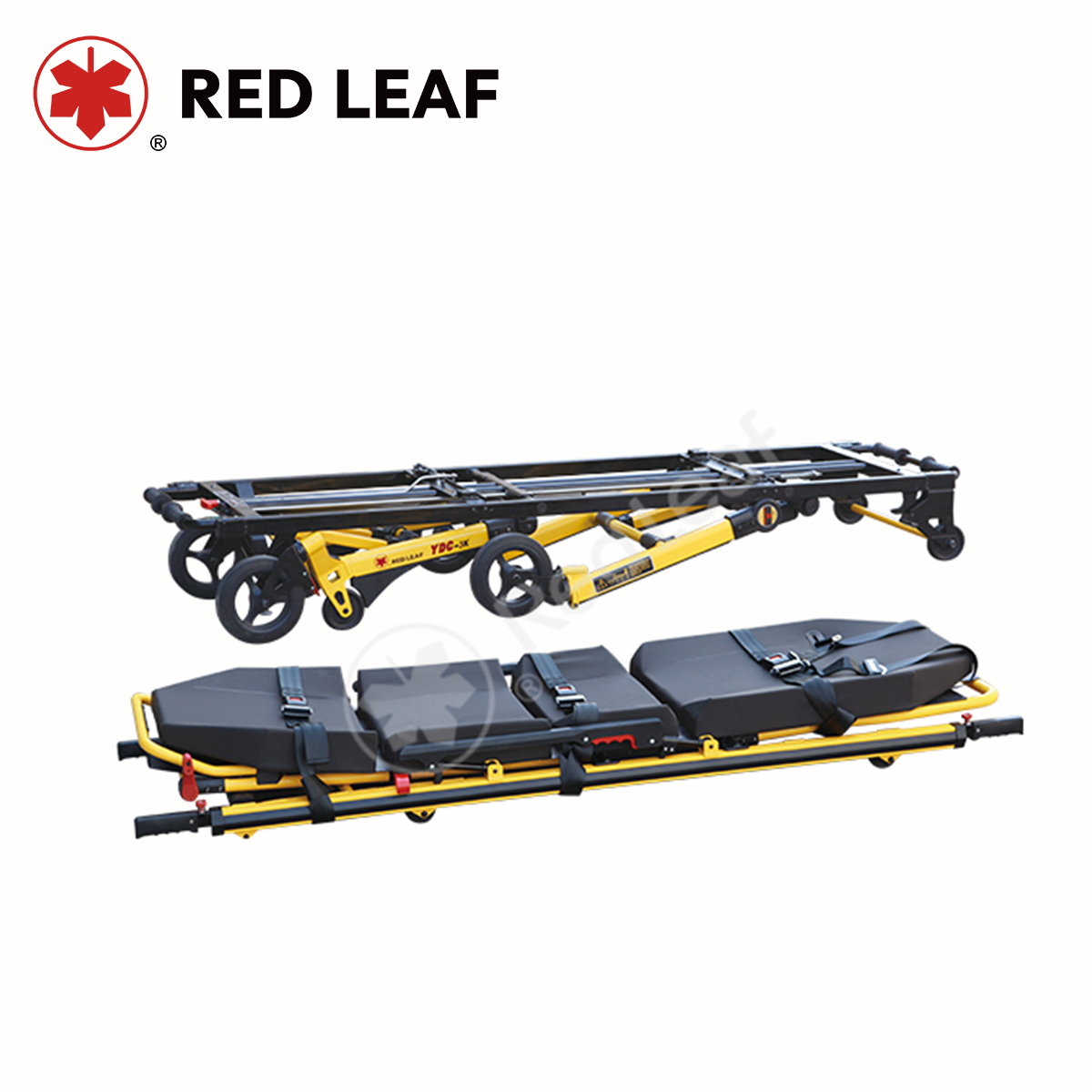

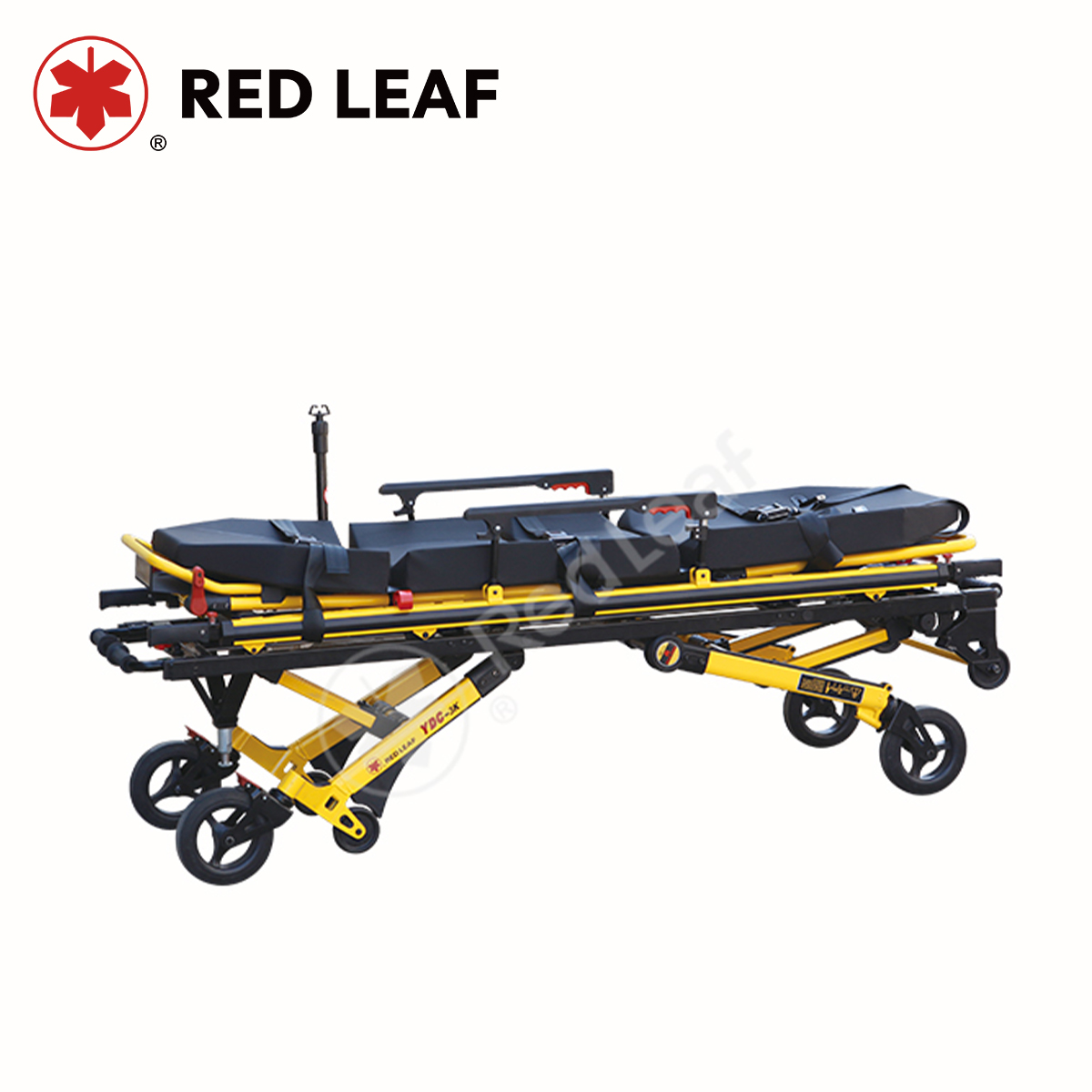

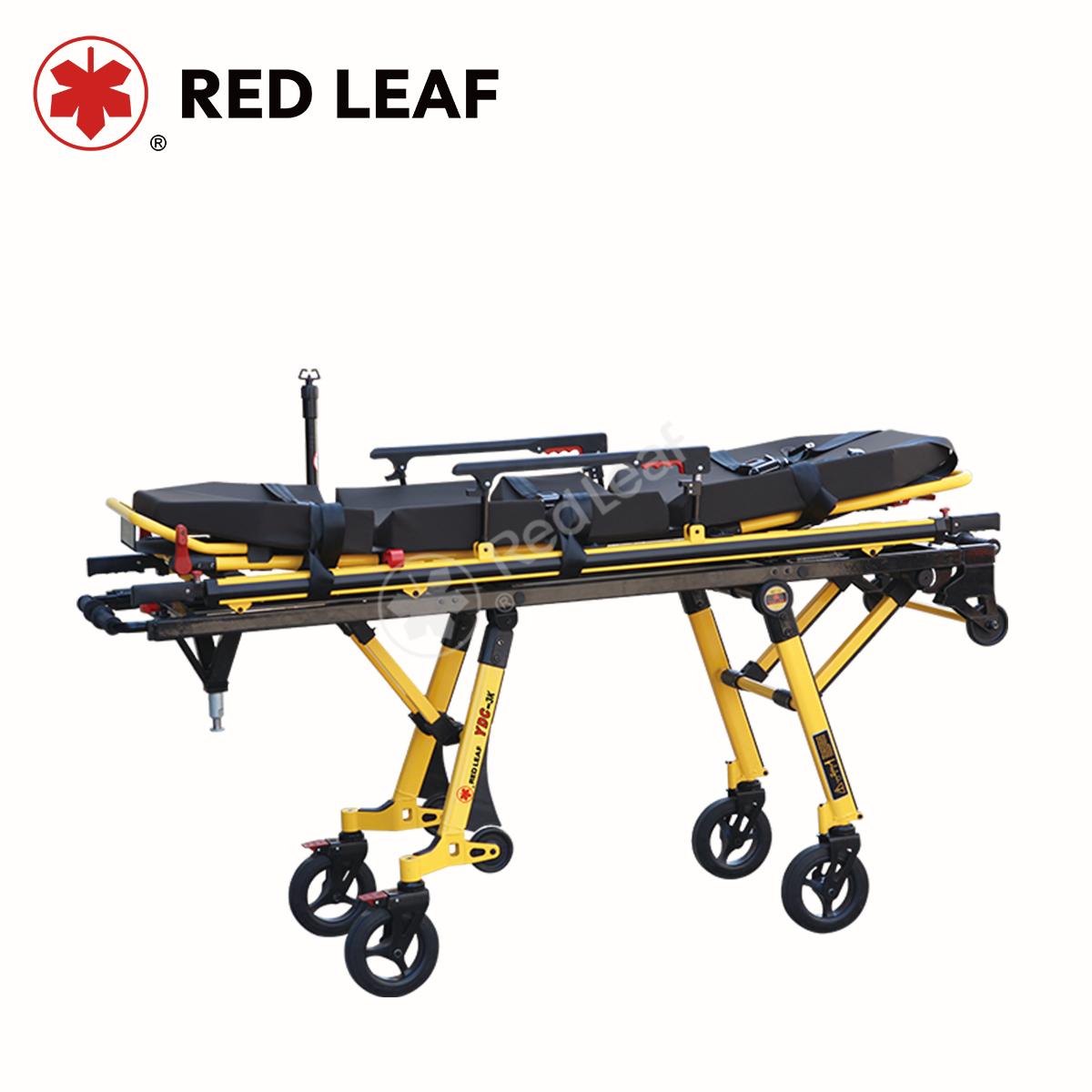

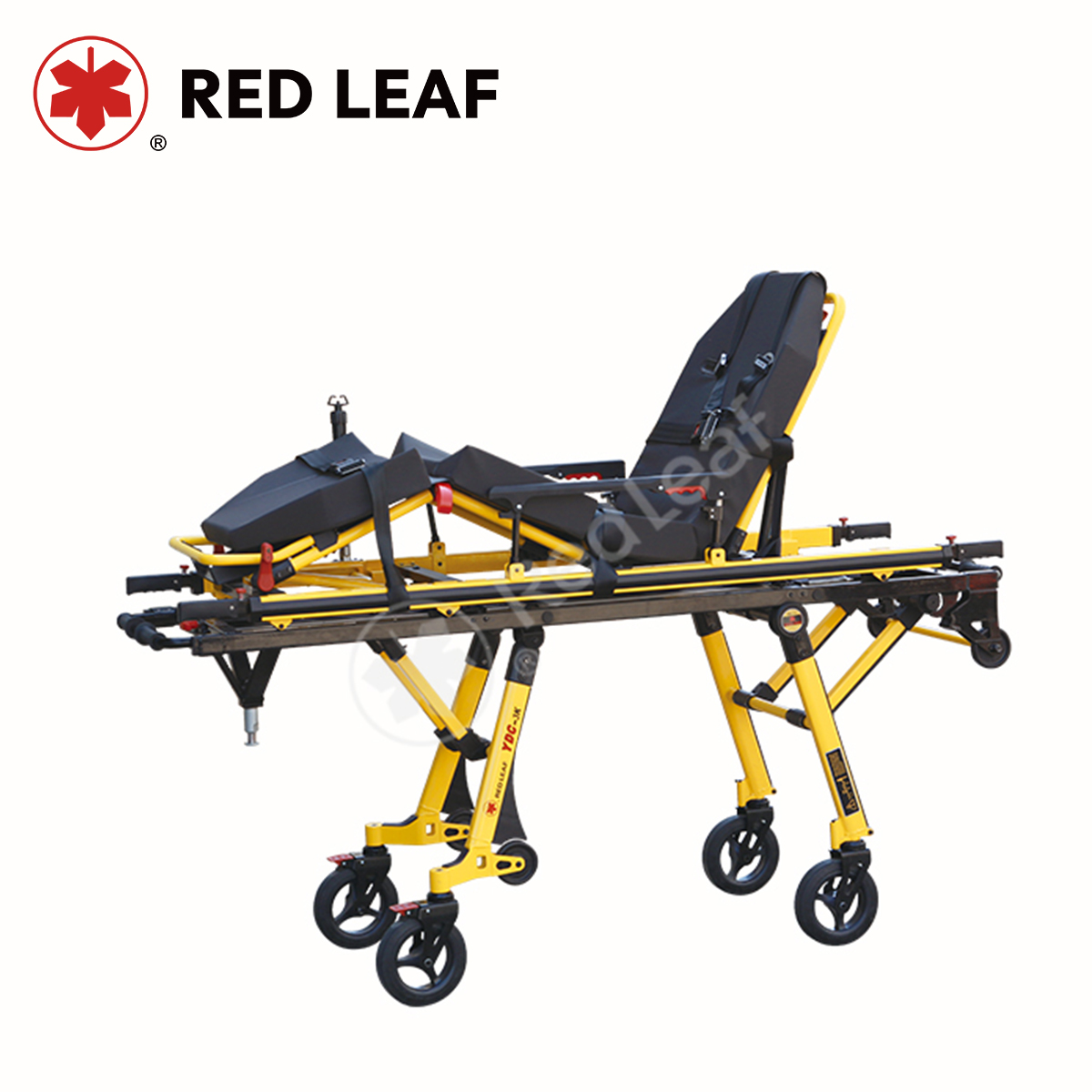

Q1: What materials are used to construct the YDC-3K ambulance stretcher?
A1: The main frame of the stretcher is built from high-strength aluminum alloy, ensuring both lightweight maneuverability and high structural durability.
Q2: How adjustable is the height of this stretcher?
A2: The overall height of the stretcher can be adjusted across more than 4 positions. Additionally, the height of the front and back sections can be adjusted in 6 distinct positions, controlled easily via front and rear pull rods.
Q3: What is the maximum load capacity of the YDC-3K stretcher?
A3: The YDC-3K ambulance stretcher has a robust load-bearing limit of up to 250 kg, making it suitable for a wide range of patients.
Q4: Are the stretcher mattress and guards patient-safe and hygienic?
A4: Yes. The guardrails are made from high-quality polymer plastics. The mattress is waterproof, flame retardant, made of wear-resistant mesh cloth (10cm thickness), and designed with a concave shape for patient security.
Q5: What are the shipping and packing specifications for this model?
A5: Each unit is packed individually (Qty: 1) in a package size measuring 208 x 66 x 62 cm. The self-weight of the stretcher is 50 kg.

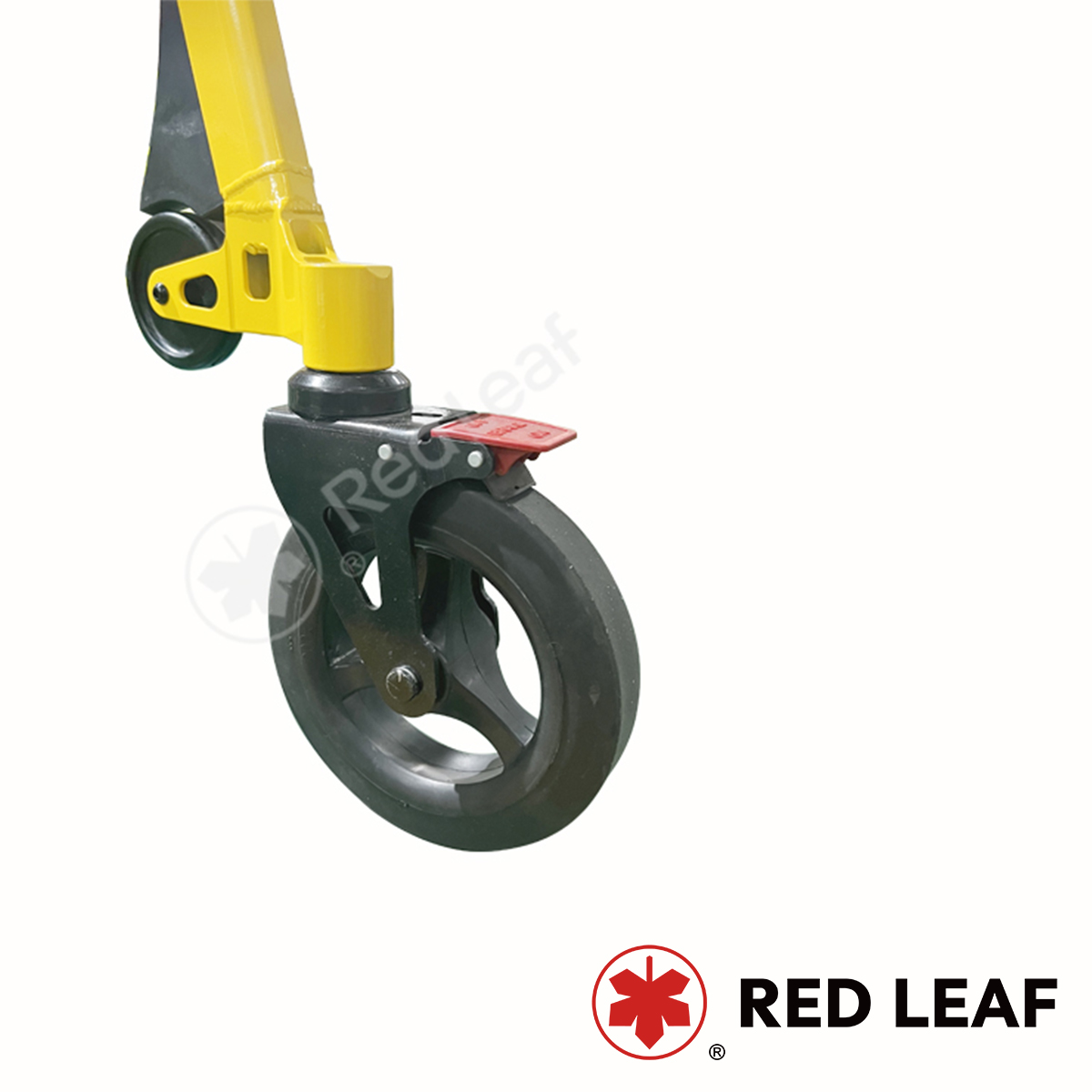

Q6: How do the front wheels lock and function?
A6: The front end universal wheels feature an elastic latch locking mechanism. They can be set to lock for straight-line tracking or unlocked for 360-degree universal mobility as required.
