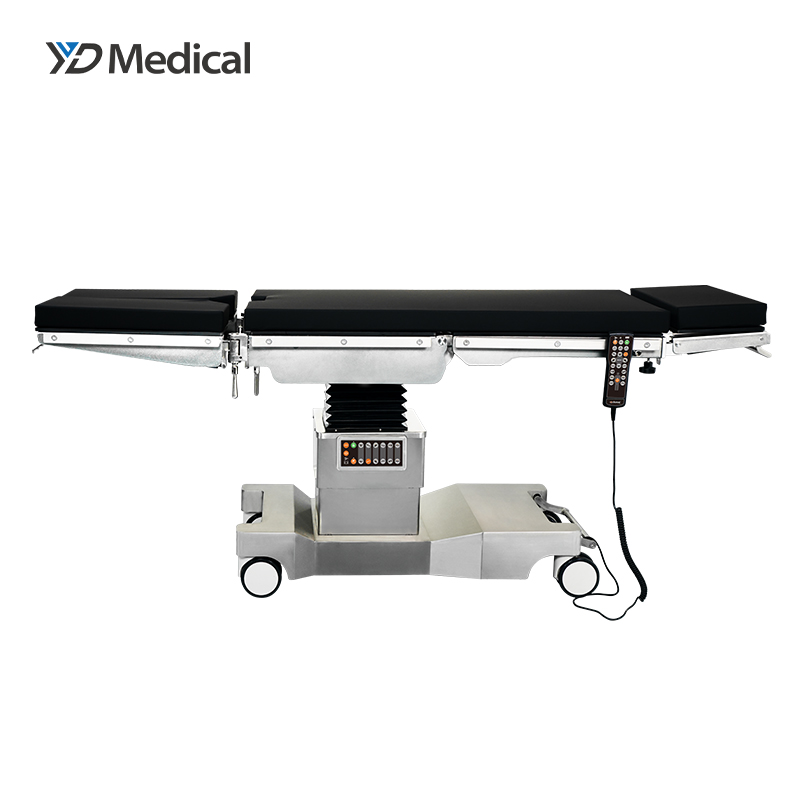

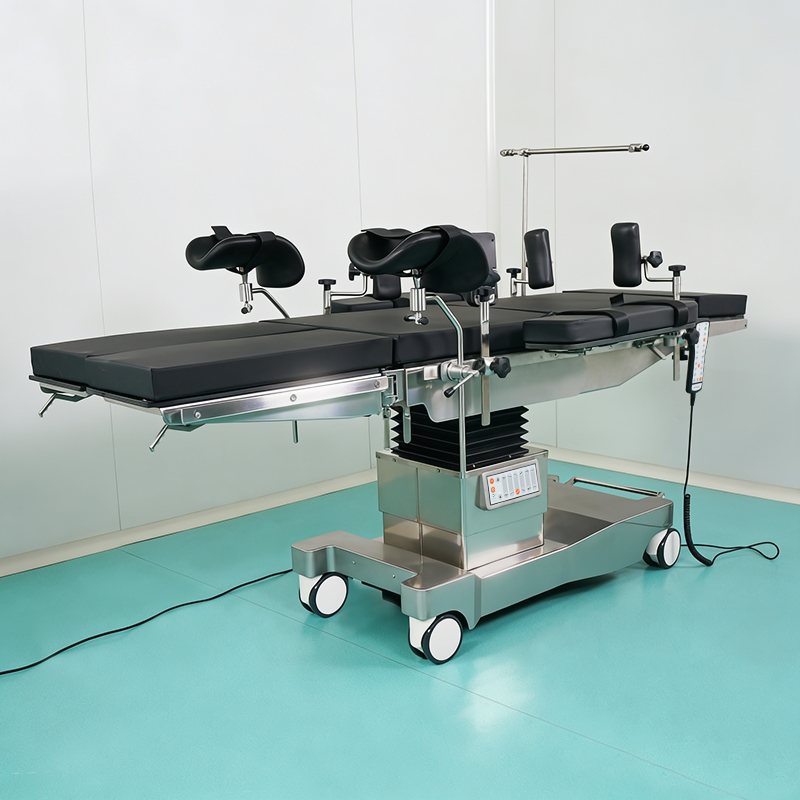

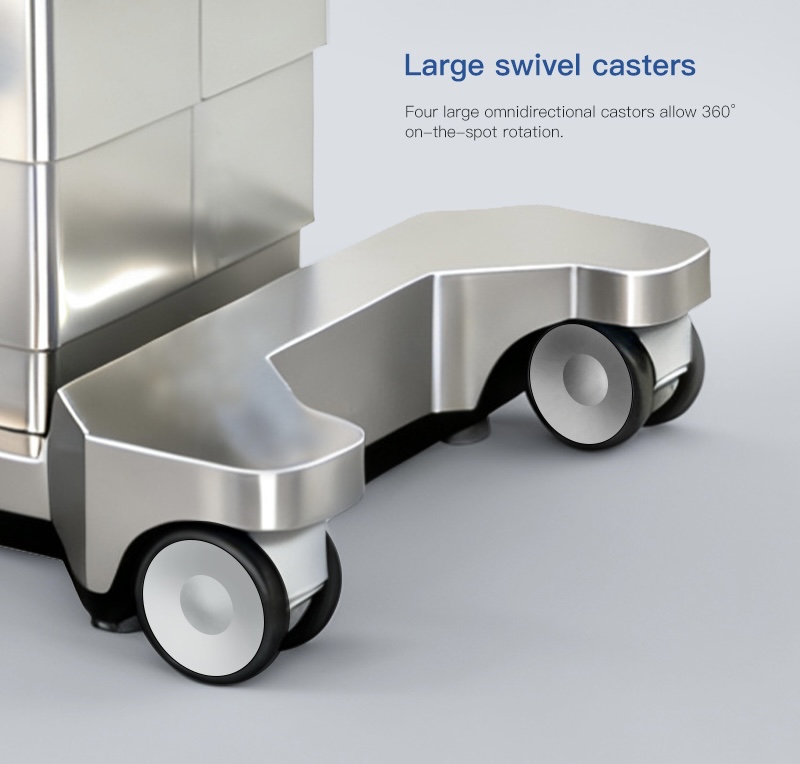

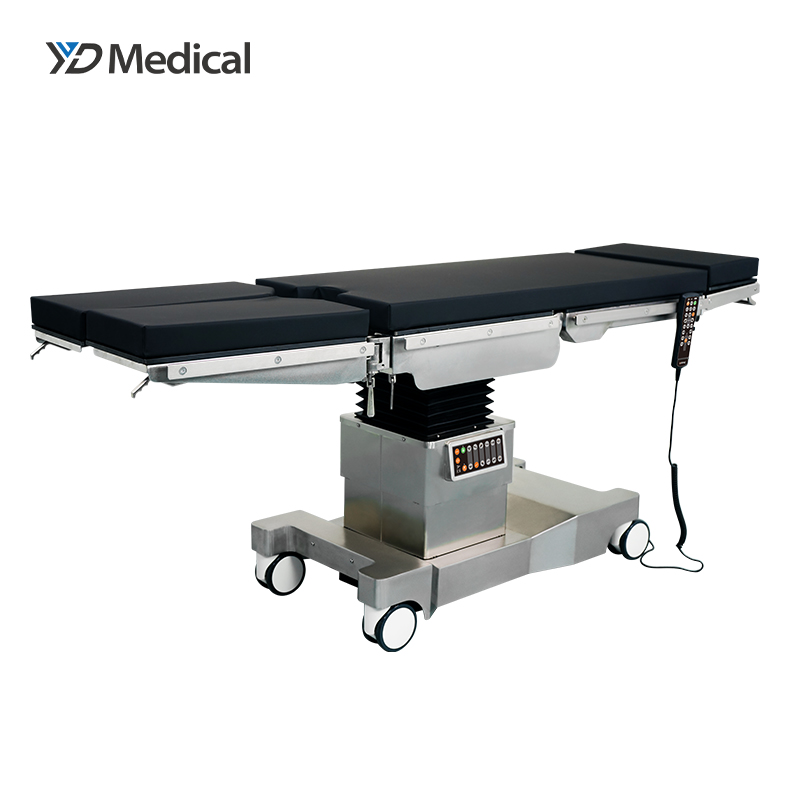

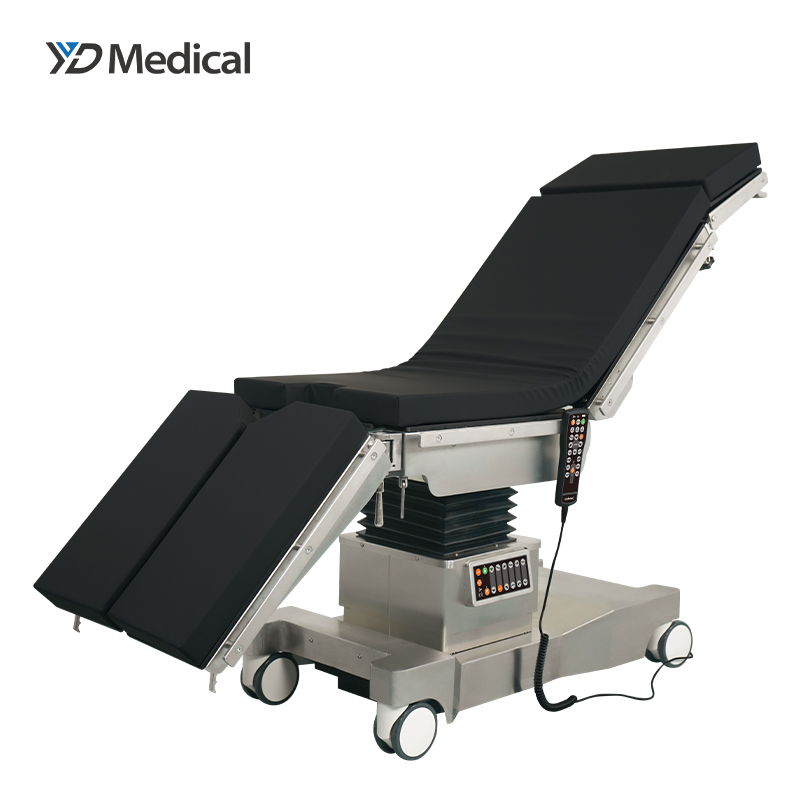

The operating table is a specialized medical device designed for surgical procedures. It features a sturdy metal frame and a comfortable bed surface. It can be adjusted in height and angle, and is equipped with fixation devices to ensure the safety and stability of the patient. The surgical bed is also equipped with wheels for easy mobility, along with accessories such as side rails and leg supports. It provides necessary support and convenience for surgical procedures, ensuring the comfort of the patient and facilitating the ease of operation for healthcare professionals.

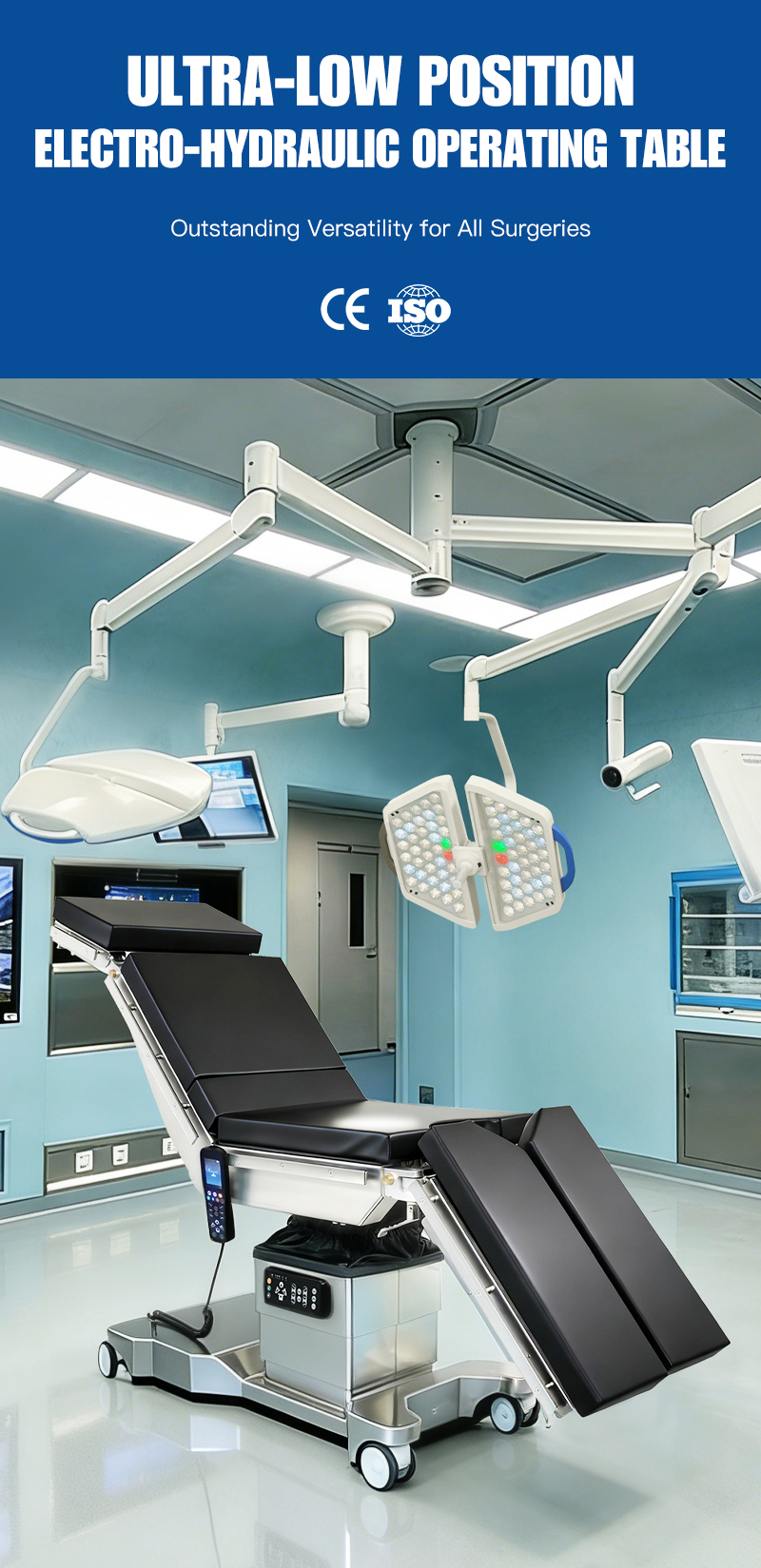

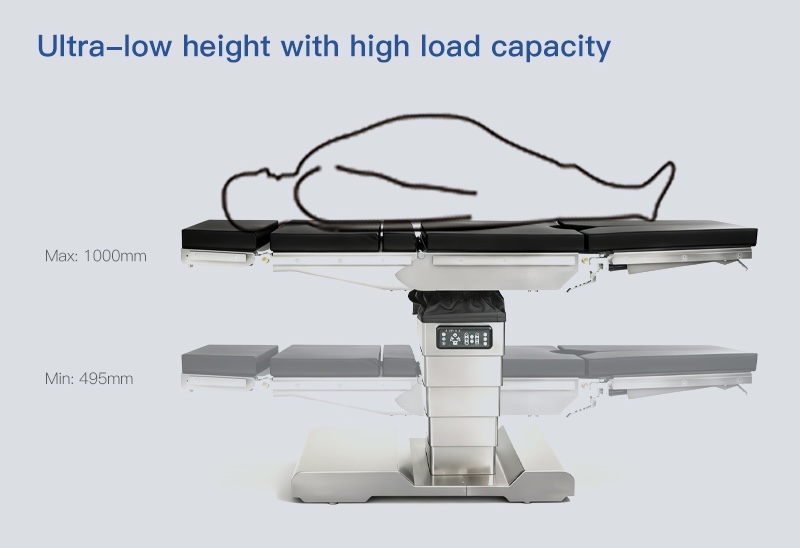

With the need of minimally invasive surgery and neurosurgery, lowest table height becomes the key to providing a more comfortable and better ergonomic working environment for surgeons. This product with the lowest table height of 495mm makes it perfect for the MIS and neurosurgery.
Under the premise of ensuring safety and stability, the operating table has a maximum load capacity of 560kg, which can meet the positioning needs of heavy (obese) patients during surgery.
| Table panel size (L*W) | 1980×510mm |
| Tabletop lowest height | 670±20mm |

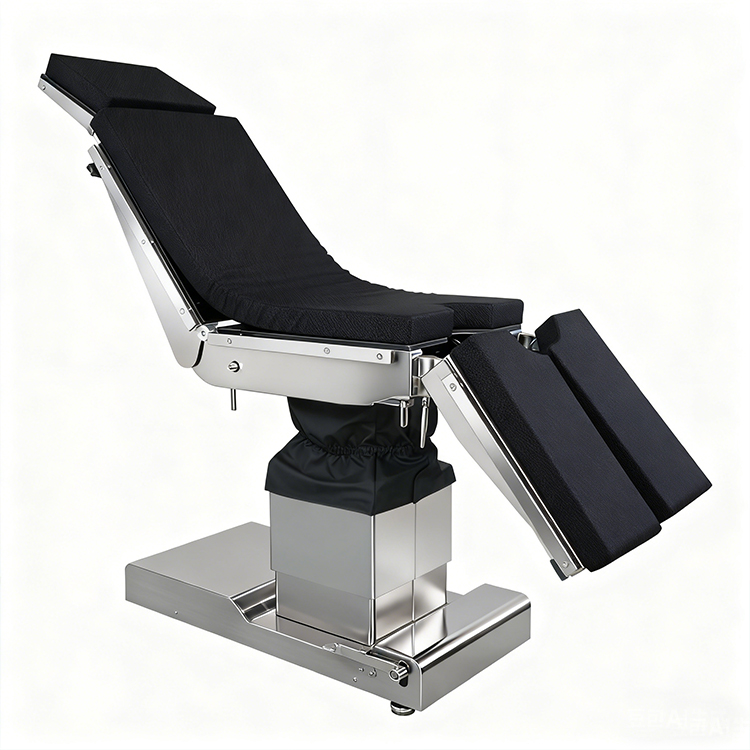

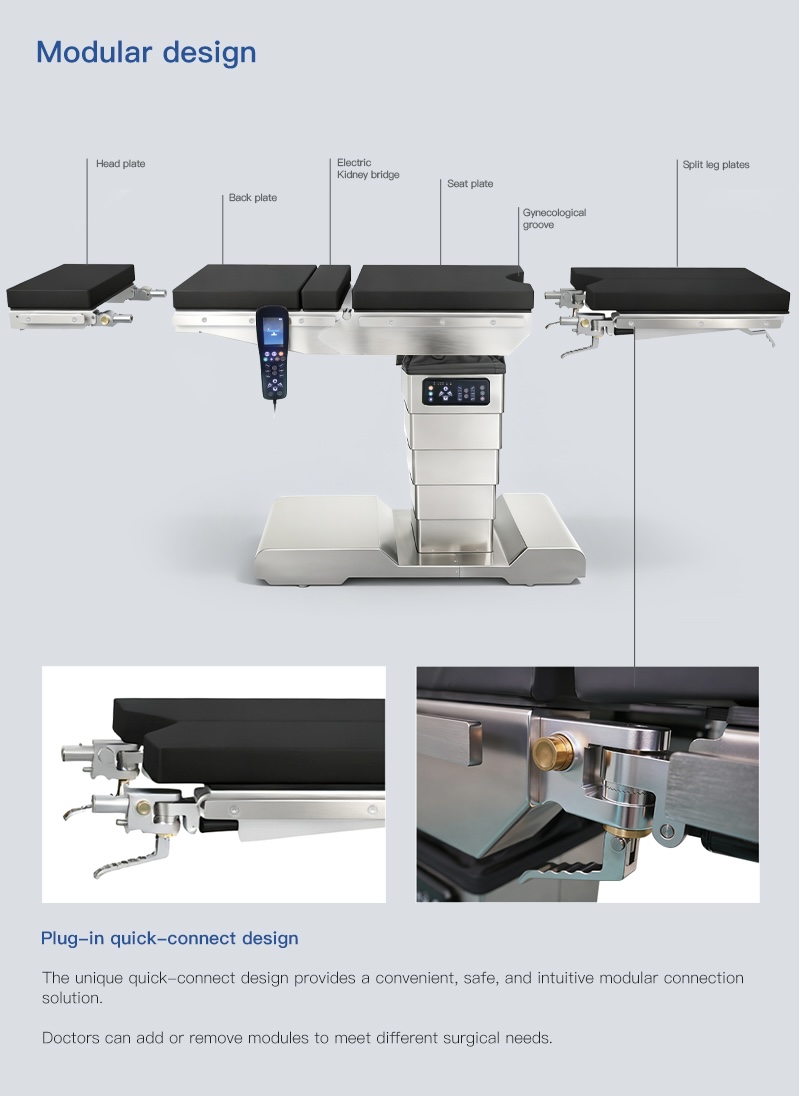

| Head plate | Up:40°±2°; Down:90°±2°; Detachable (manual) |
| Back panel | Up:60°±2°; Down:25°±2° |
| Trendelenburg/Reverse trendelenburg | 20°±2°/20°±2° |
| Lateral tilt(Left and Right) | Left tilt:23°±2°; Right tilt:23°±2° |
| Leg board | Up:30°±2°; Down:90°±2° (manual) |
| Kidney Bridge elevation | 120mm |
| Longitudinal translation | 300mm |
| Safe carrying capacity | 200kg |
| Net weight | 175kg |
